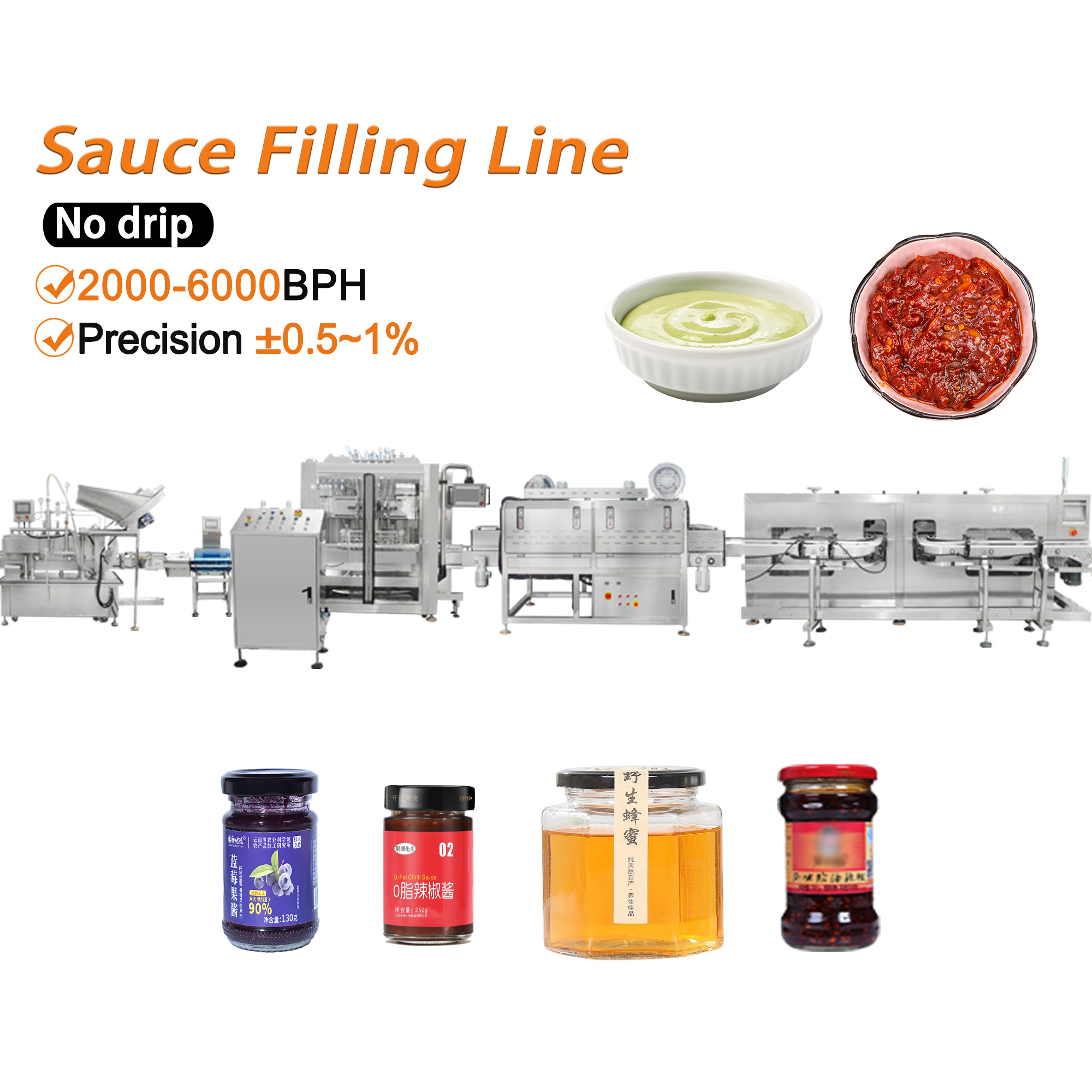

Tomato Sauce Blueberry Sauce Jars Washing Drying Filling Capping Production Line

Item No.: 00397
Min.Order Quantity: 1 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Guangzhou
Payment Terms: T/T,Western Union,paypal
Description
Description

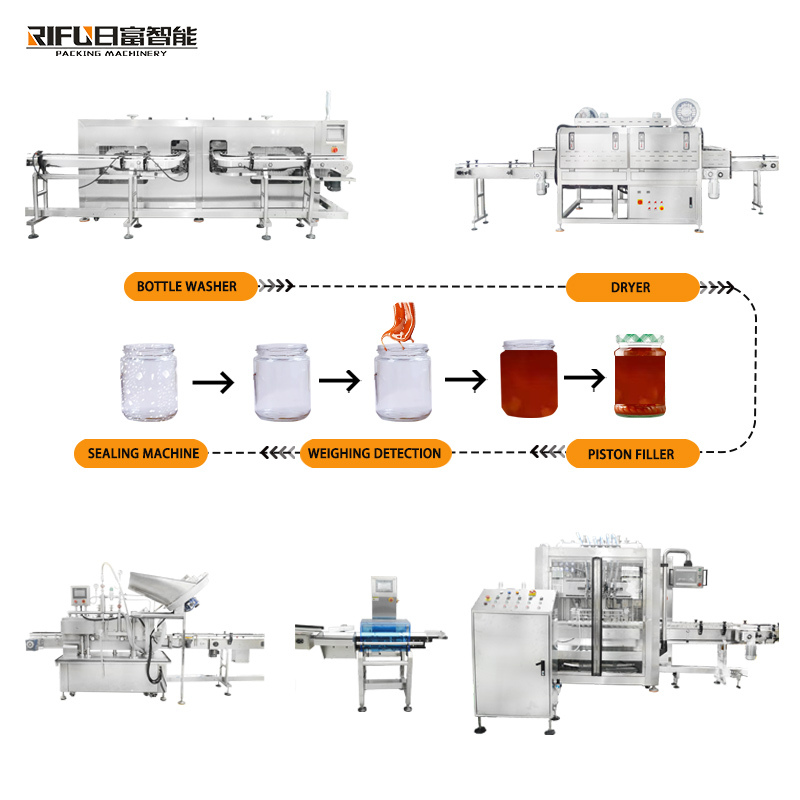

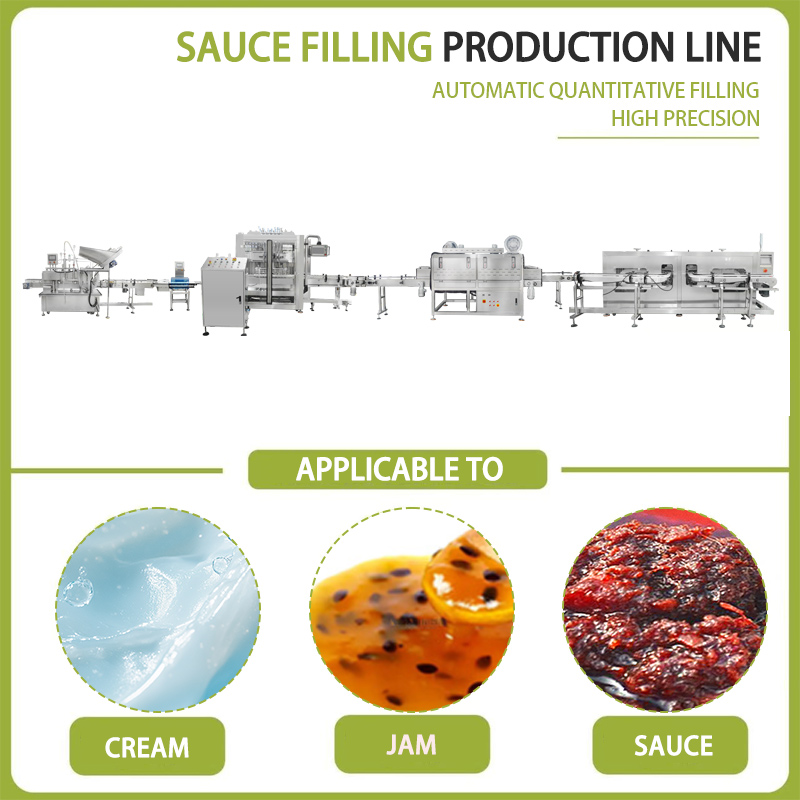

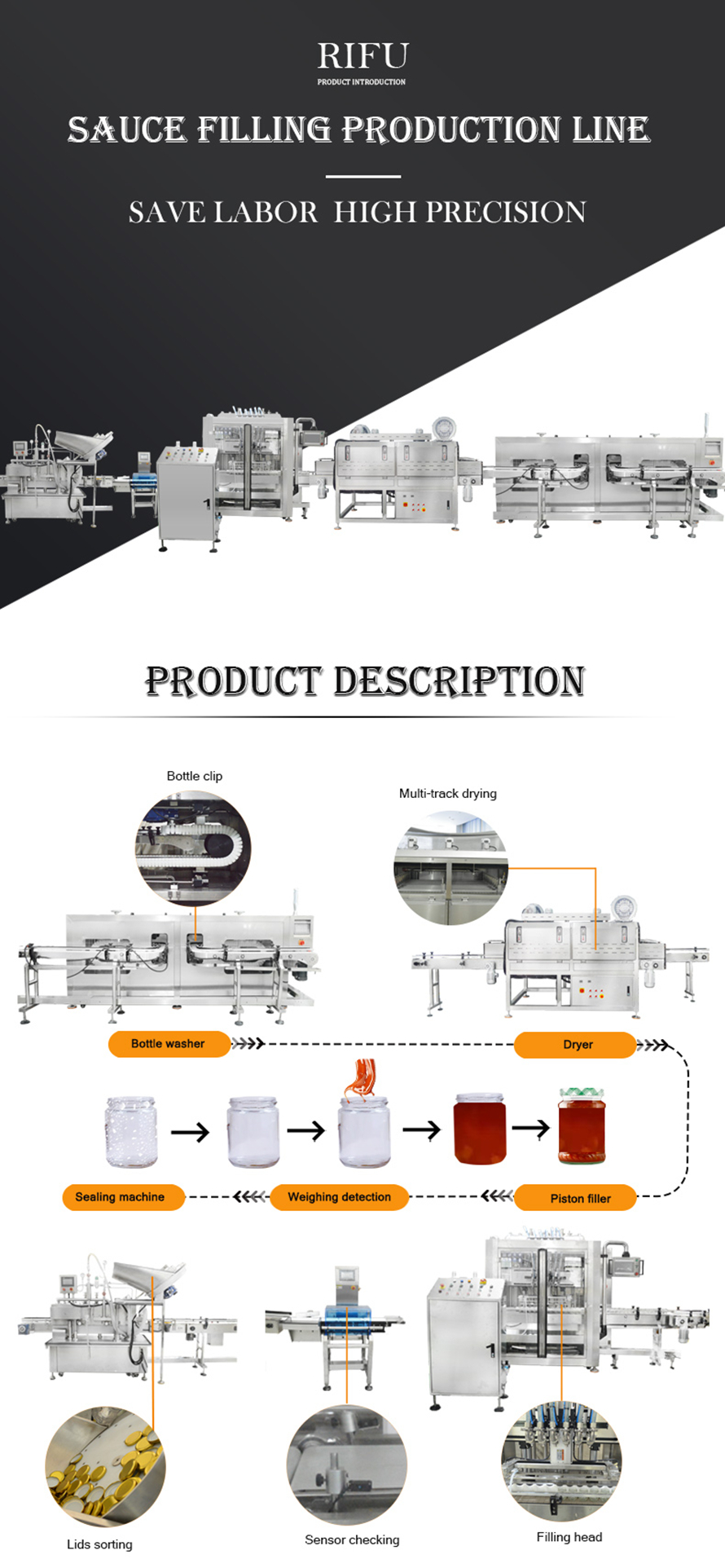

This production line integrates multiple processes for sauce packaging:
1.

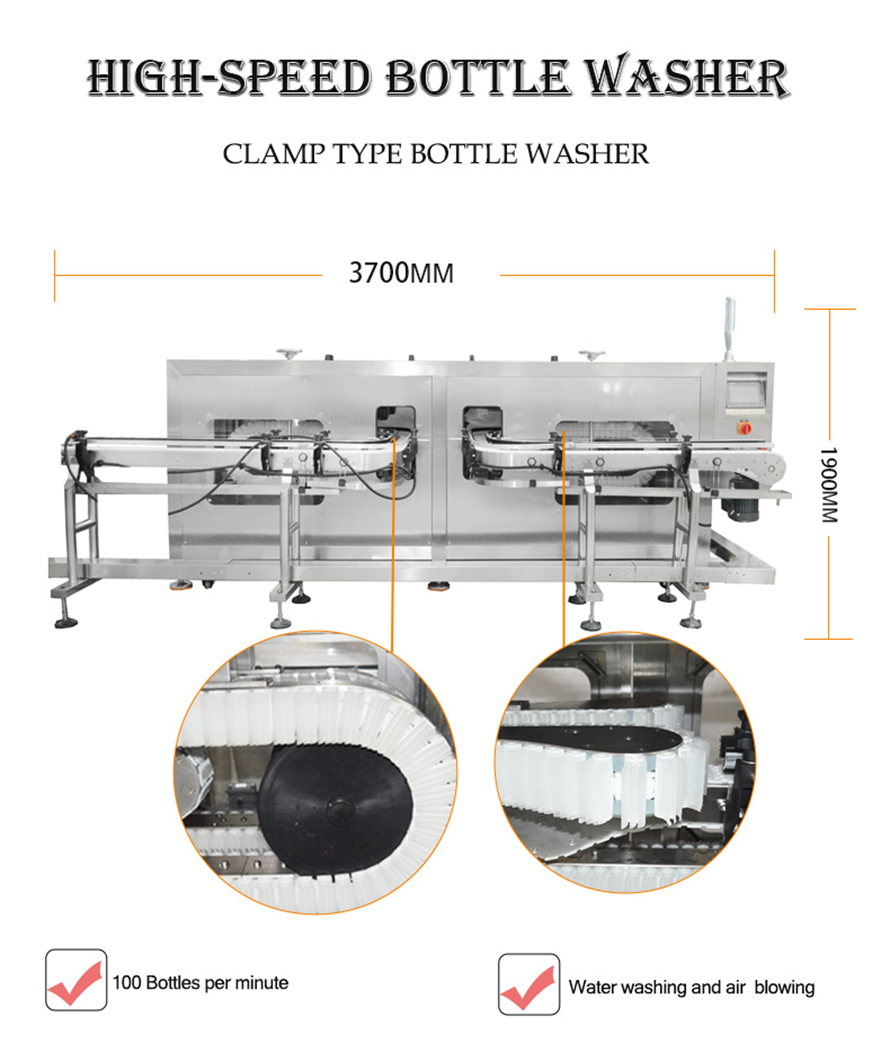

Bottle Washing Machine: Uses high-pressure water or cleaning agents to remove contaminants.
2.

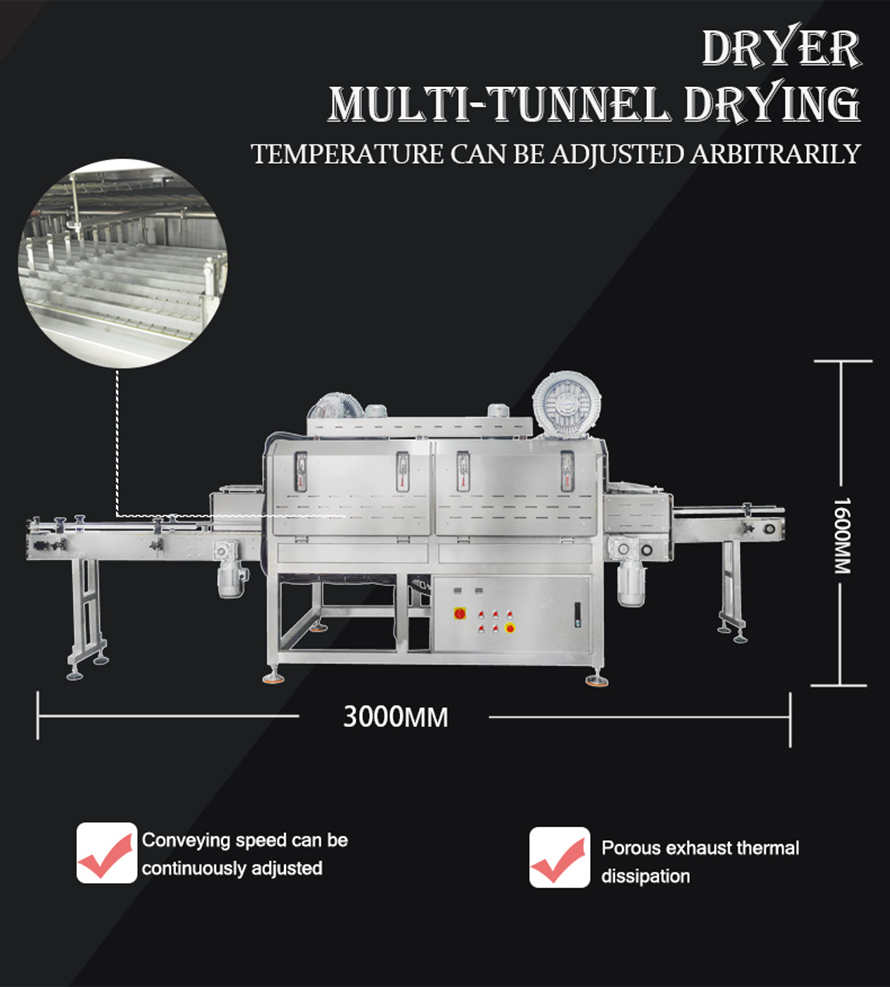

Drying Machine: Employs hot air or steam to ensure bottles are completely dry before filling.This production line integrates multiple processes for sauce packaging:
3.

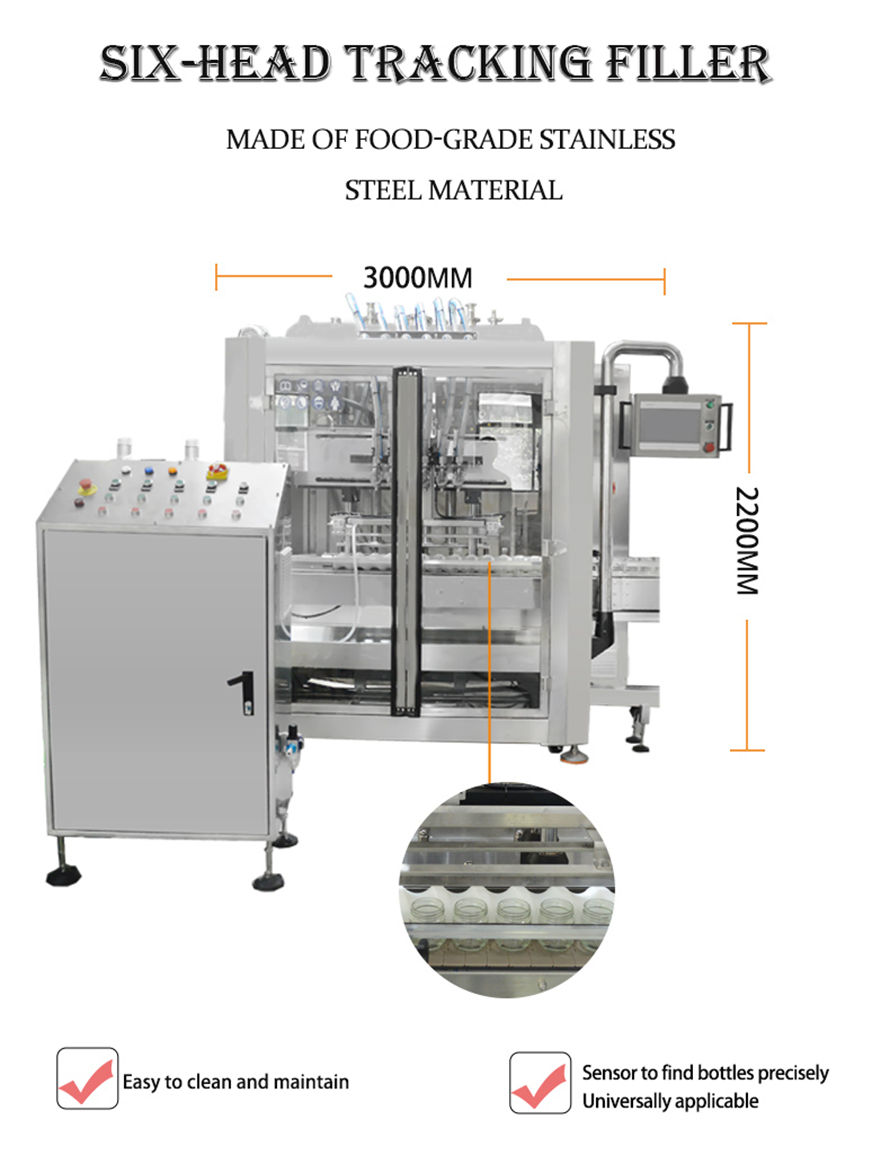

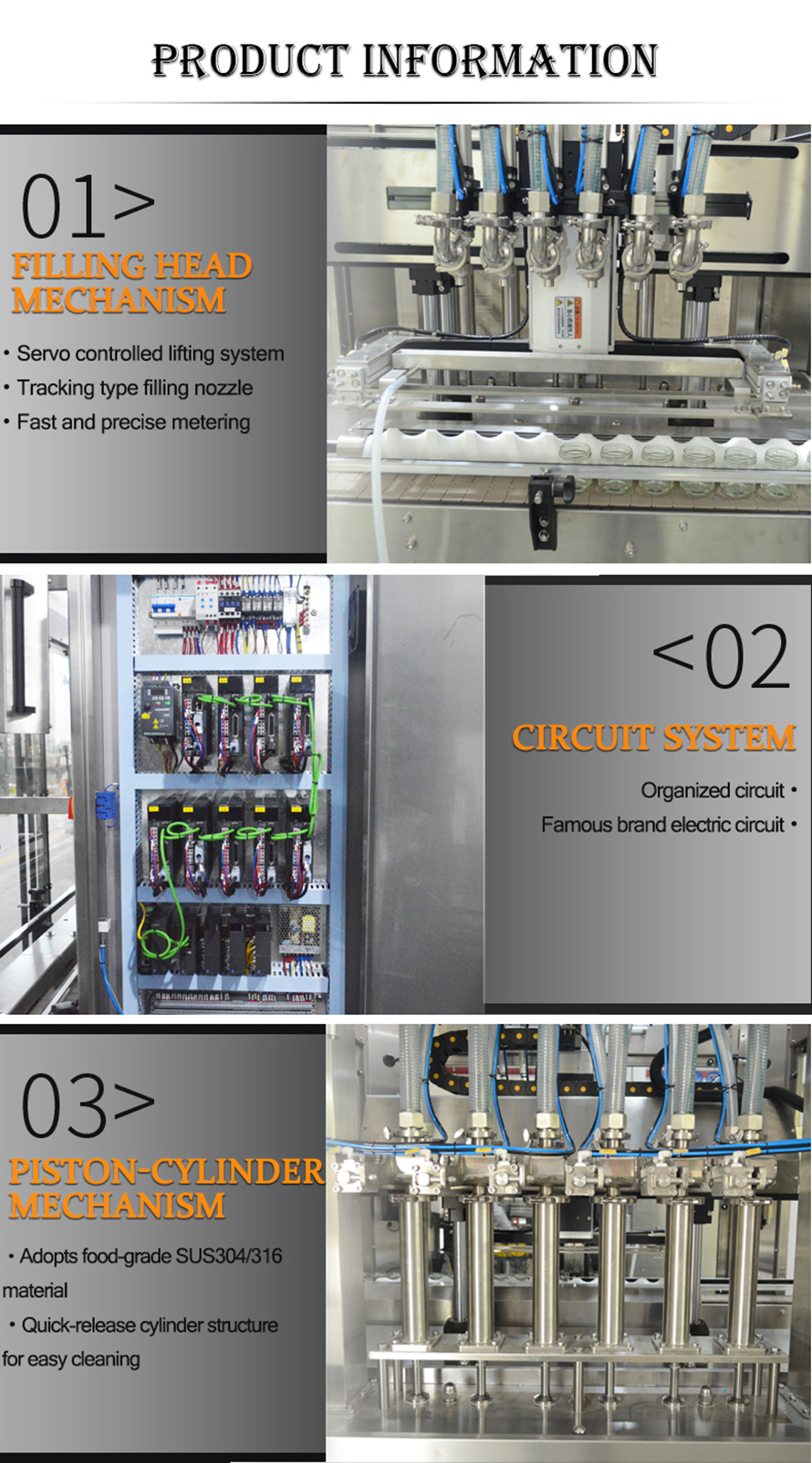

Tracking Piston Filling Machine: Precise piston for viscous sauces, with adjustable volumes.Control filling nozzle follow moving bottles during filling work.It reduce production error and improve filling accurately.
4.

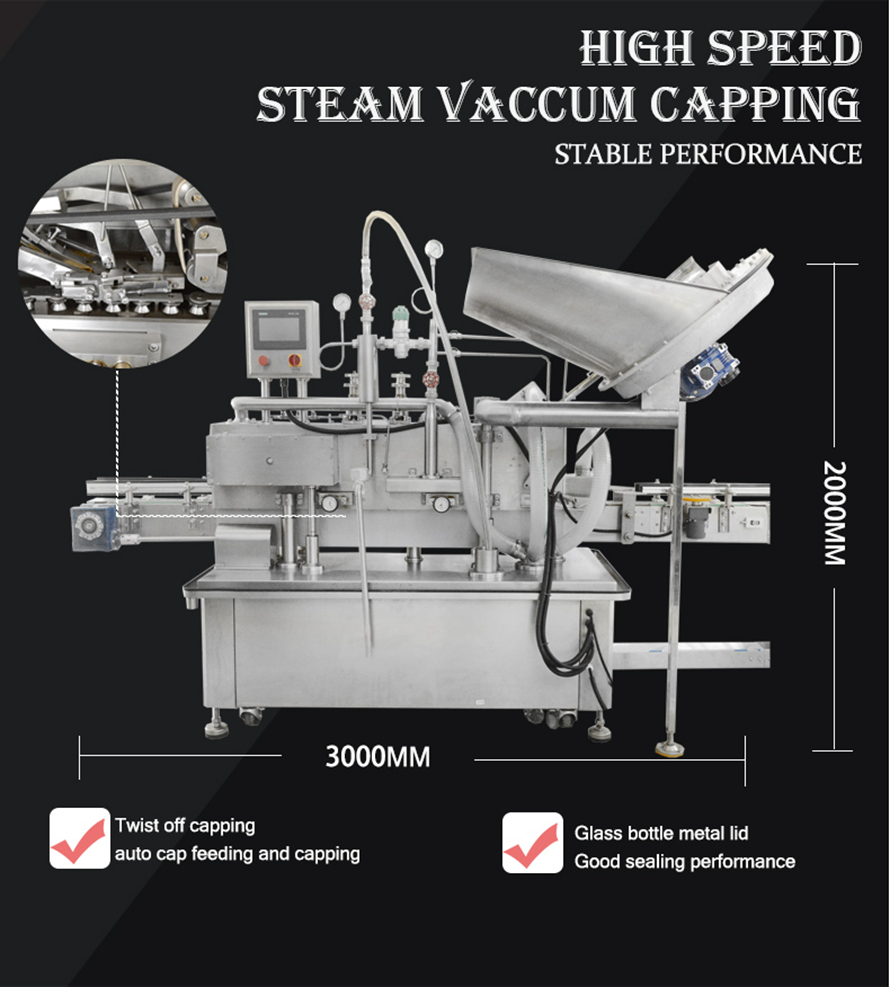

 Steam Vacuum Capping Machine: Injects steam to expel air, then caps under vacuum to extend shelf life.
Features:
- Automatic operation for high efficiency and consistency.
- Stainless steel construction for hygiene and corrosion resistance.
- Suitable for various sauce types (e.g., ketchup, soy sauce, dressings).

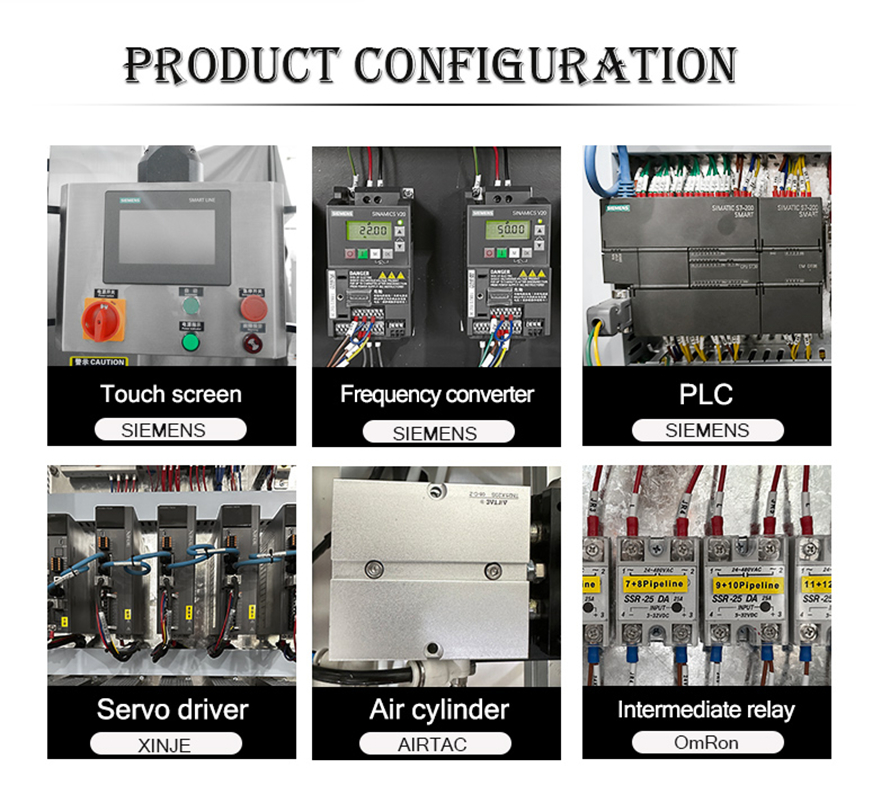

- PLC control system for easy parameter adjustment.
Ideal for food processing industries seeking reliable sauce packaging solutions.

APPLICATION
High-viscosity Liquids(Honey,Syrup,Shampoo,Detergent,etc)
Paste/Semi-fluids(Cream,Ointment,Ketchup,Sauce,etc)
FiLLING SPEED
90-130 BOTTLES/MIN(DEPNDING ON THE ACTUAL PRODUCT MATERIAL TEST)
PRODUCT MODEL
CUSTOMIZABLE
POWER
6.6KW
BOTTLE DIAMETER
30-100MM (CUSTOMIZABLE)
BOTTLE HEIGHT
45-250MM (CUSTOMIZABLE)
FILLING RANGE
10-100ML 100-1000ML 1-5L(CUSTOMIZABLE)
DIMENSIONS
5000*1500*2300MM
NET WEIGHT
950KG
