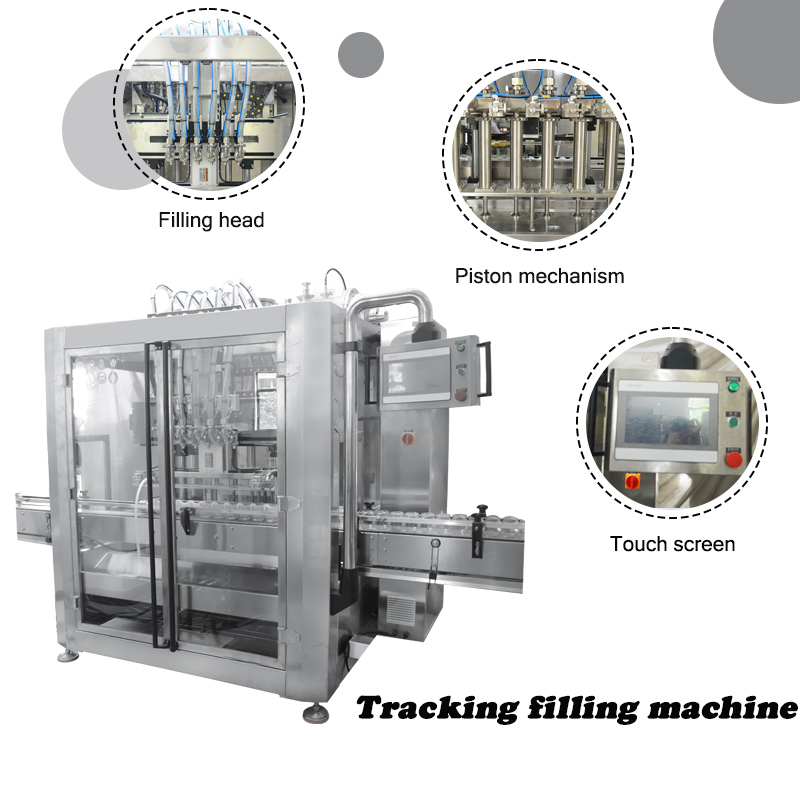

The tracking piston filling machine is an advanced automated packaging equipment designed for high-precision filling of liquids, viscous substances, pastes, and semi-fluids. It integrates servo-driven piston mechanisms with intelligent tracking systems to achieve synchronized container positioning and accurate dispensing. Below are its key features and technical highlights:
1. Core Mechanism and Precision

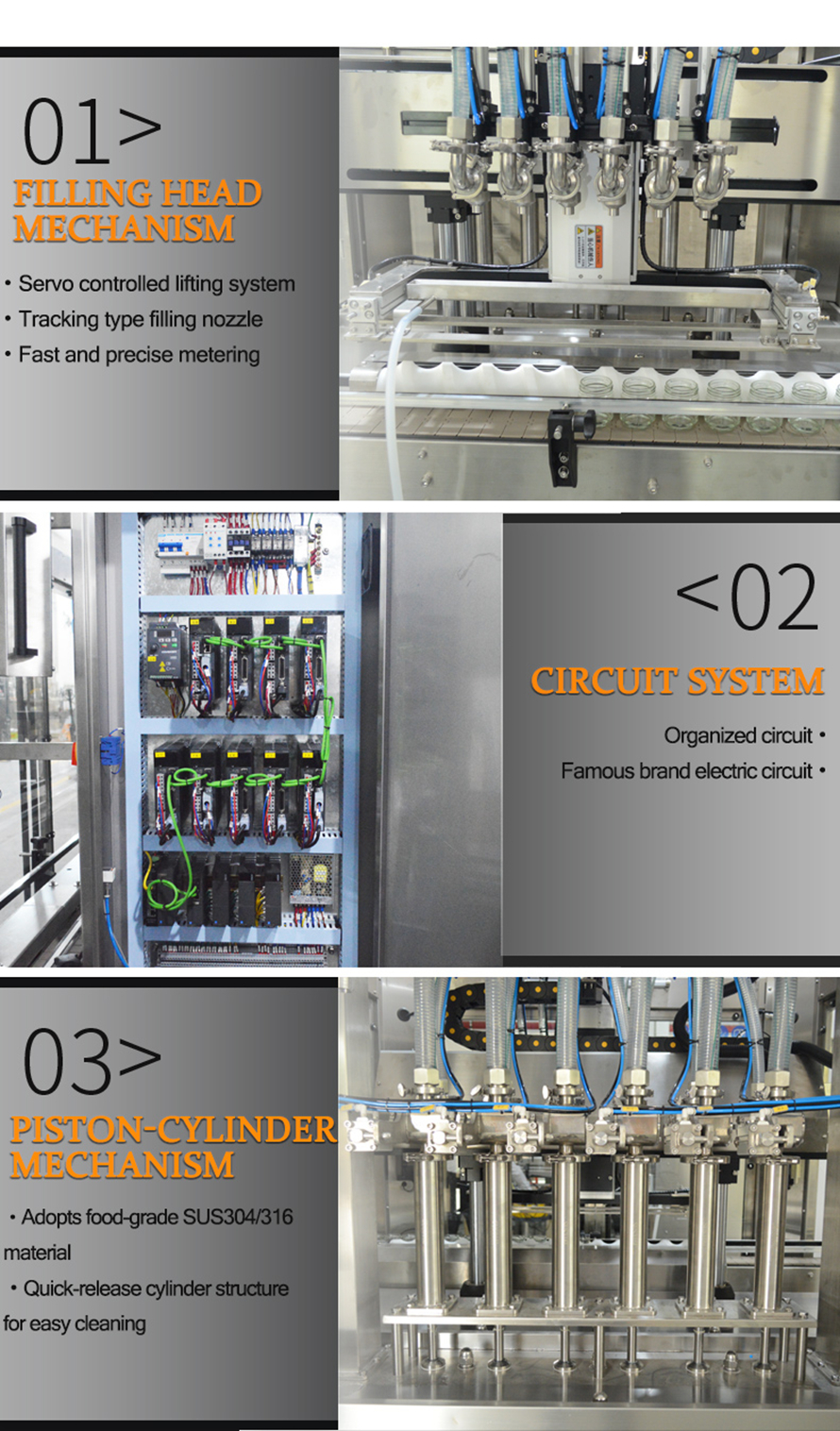

- Servo-Driven Piston System: Utilizes servo motors to control piston strokes, ensuring precise volumetric filling with an accuracy of ±0.5%.
- Linear Tracking Technology: Equipped with photoelectric sensors or probes to detect container positions in real-time, enabling synchronized motion between filling nozzles and moving containers on the conveyor. This eliminates spillage and ensures "no bottle, no filling" functionality.
2. Key Components and Automation

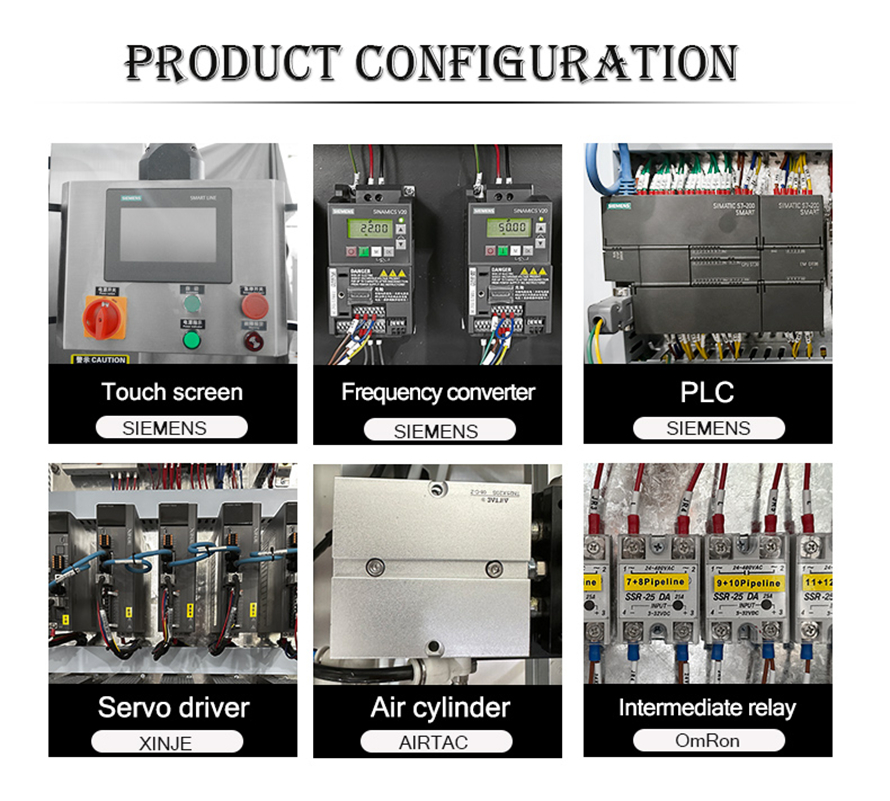

- PLC Control & HMI Interface: Easy parameter adjustments (e.g., filling volume, speed) and recipe management.

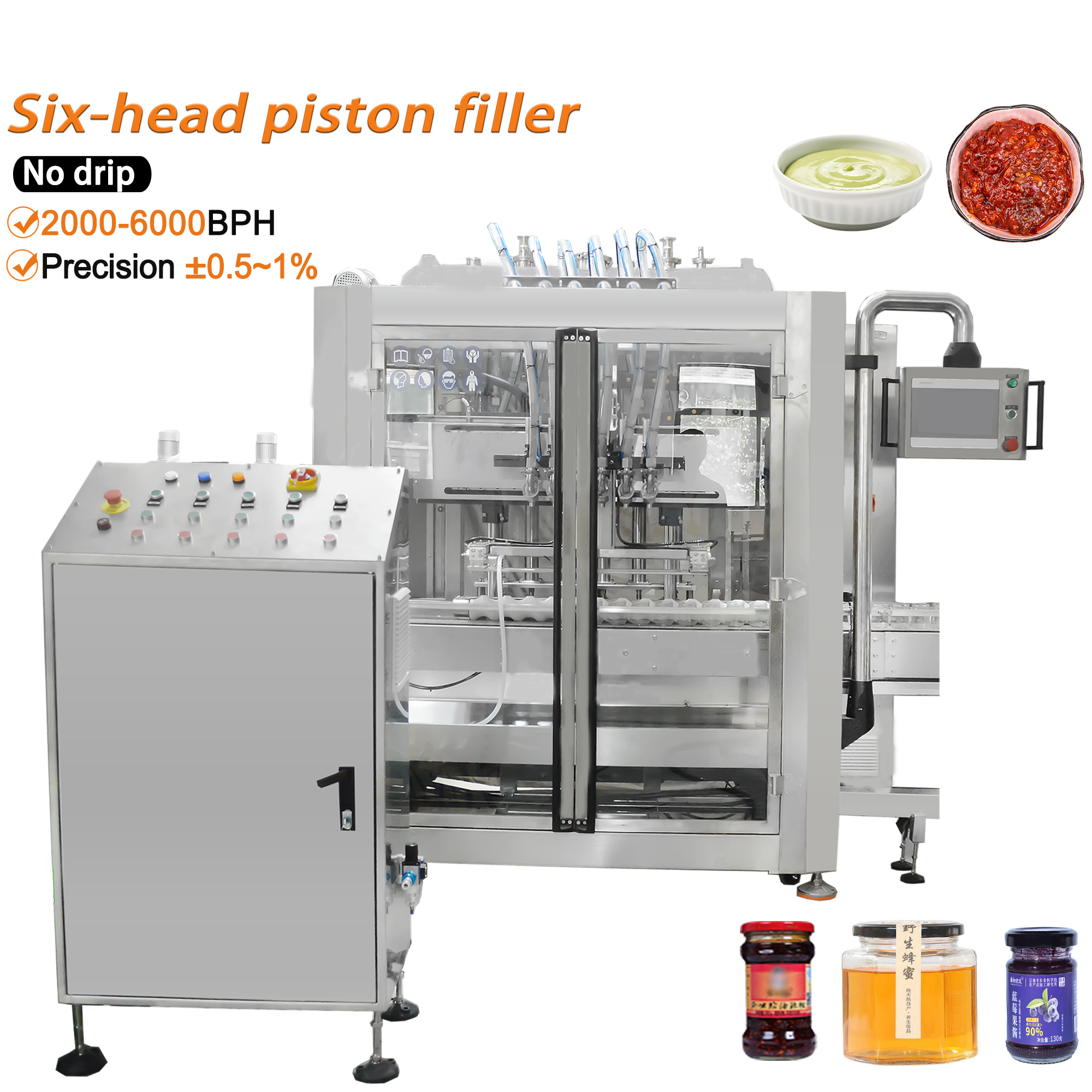

- Multi-Head Configurations: Supports 2–12 filling nozzles for high-speed production.

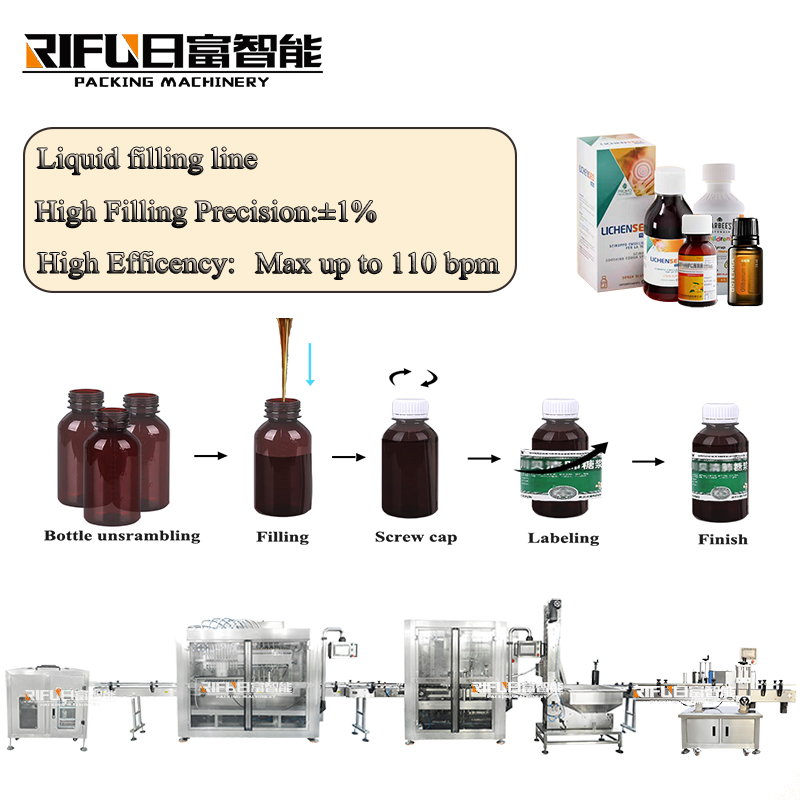

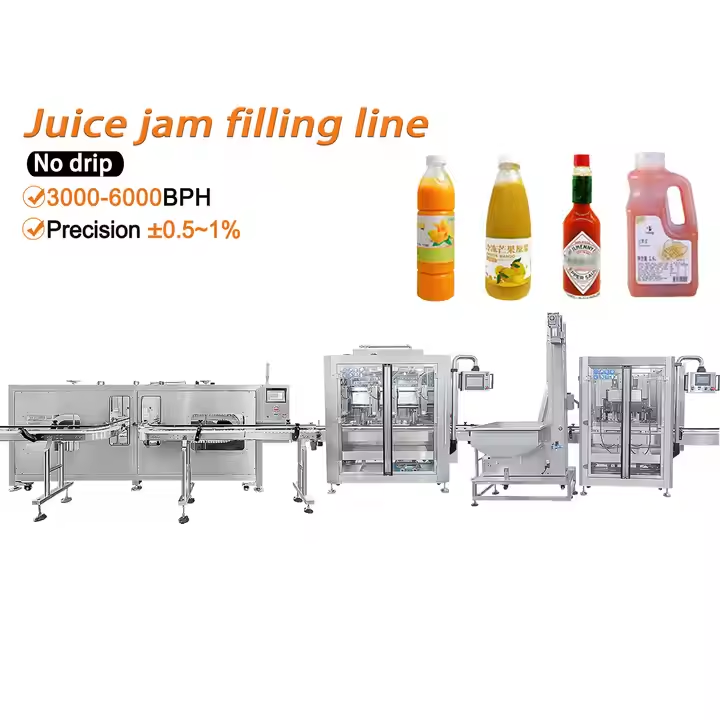

- Automatic Integration: Compatible with capping, labeling, and packaging lines, forming a complete production system for beverages, shampoos, pharmaceuticals, and more.

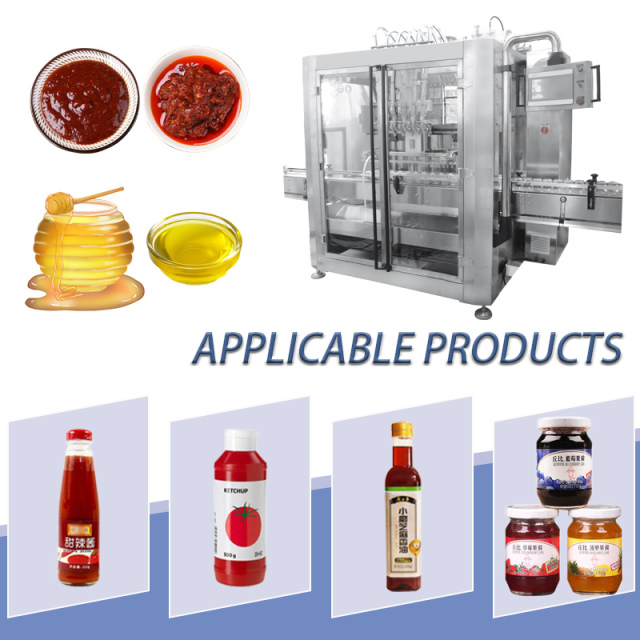

3. Applications
Widely used in industries requiring precise and hygienic filling:
- Food & Beverage: Ketchup, honey, oils, sauces, dairy products.
- Cosmetics & Chemicals: Shampoo, lotion, lubricants, detergents.
- Pharmaceuticals: Ointments, gels, liquid medications.
|
FILLING SPEED
|
90-130 BOTTLES/MIN(DEPNDING ON THE ACTUAL PRODUCT MATERIAL TEST)
|
|
POWER
|
6.6KW
|
|
FILLING RANGE
|
10-100ML 100-1000ML 1-5L(CUSTOMIZABLE)
|
|

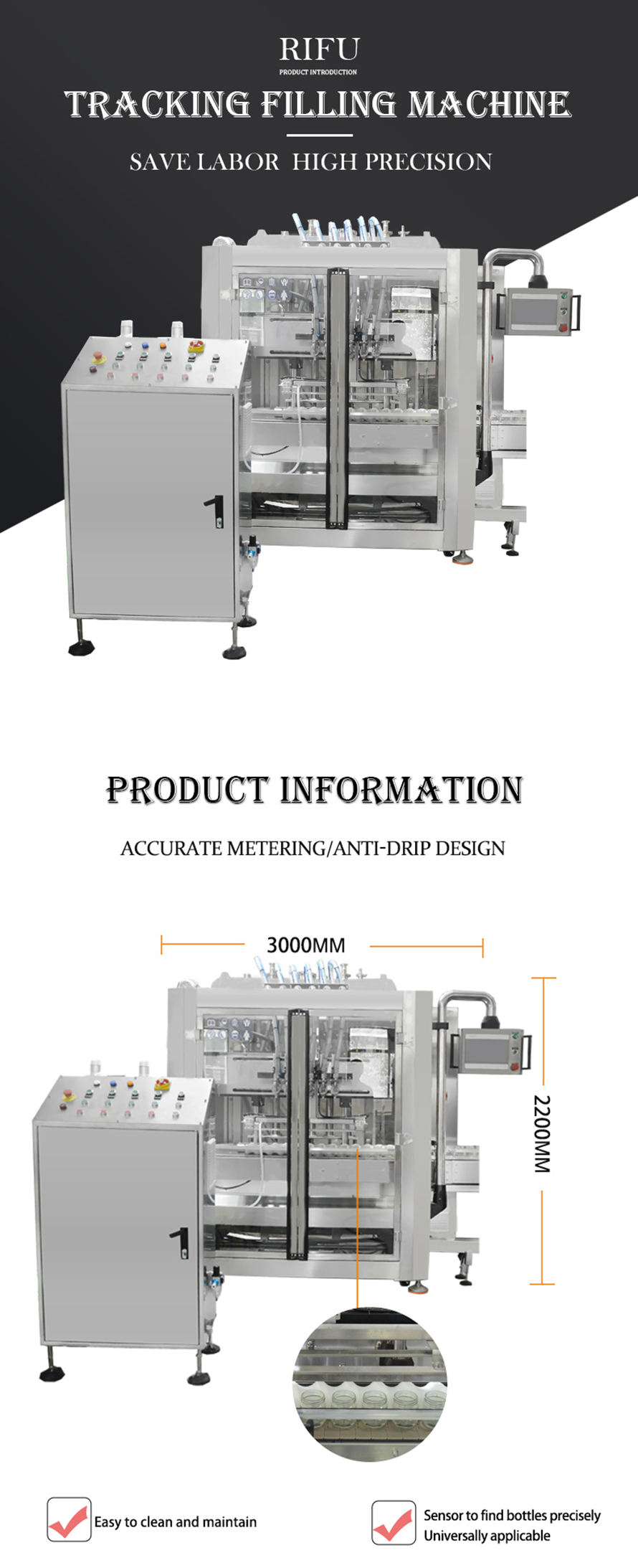

DIMENSIONS
|
3000*1500*2200MM
|
|
NET WEIGHT
|
600KG
|
