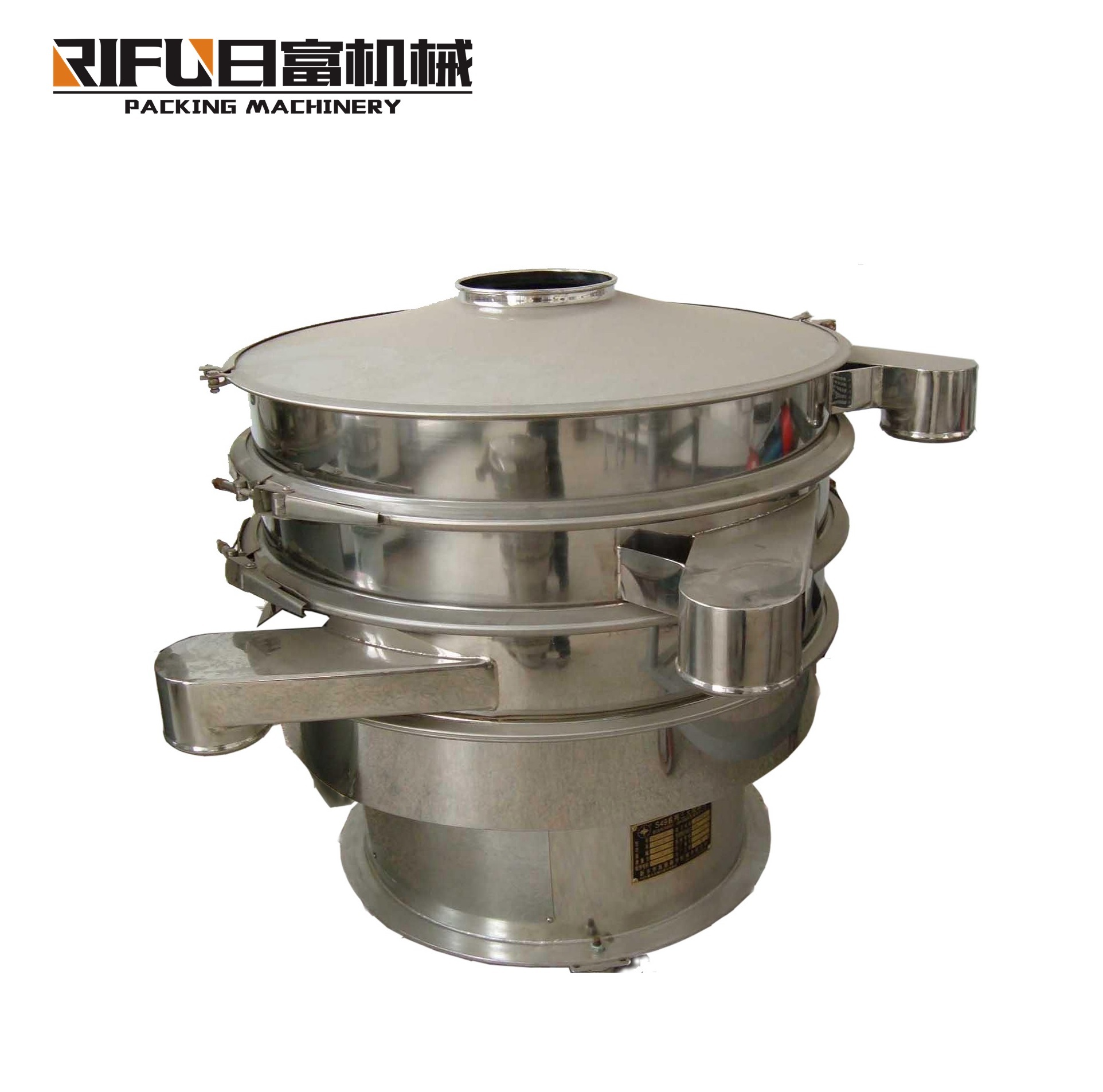

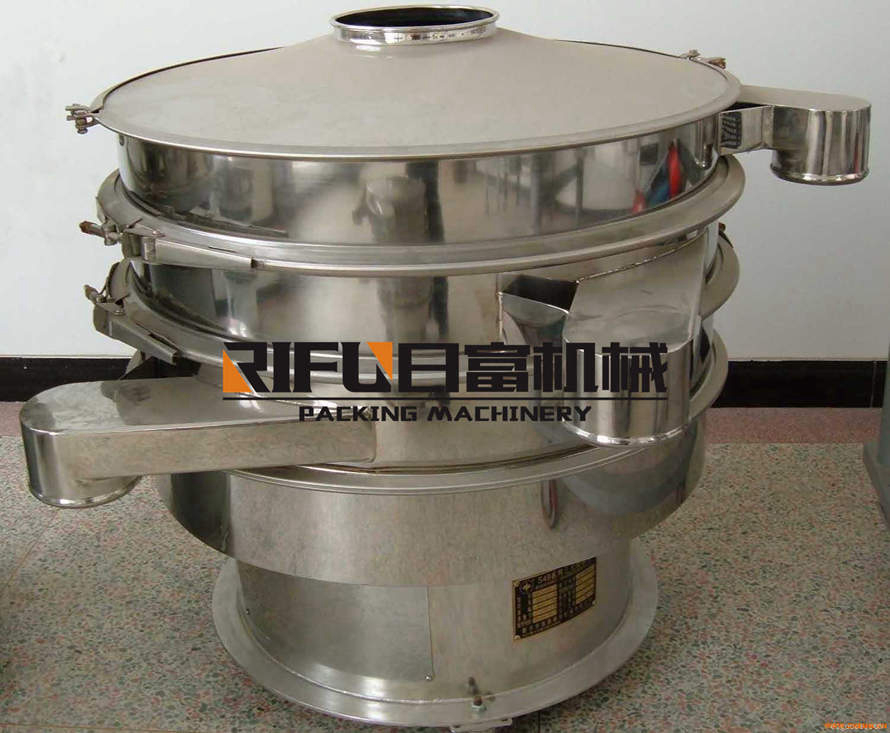

Rotary vibrating sifter

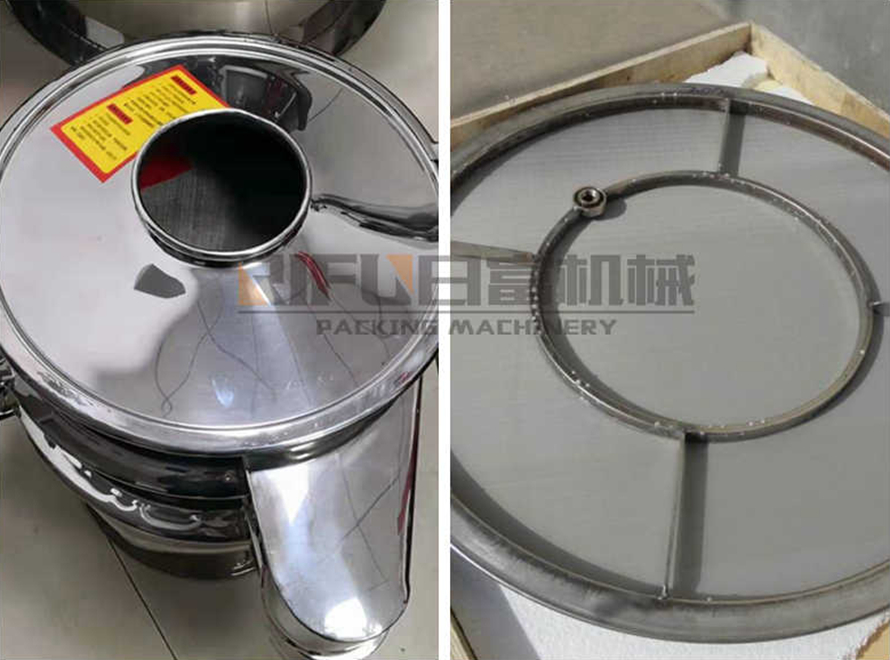

This rotary vibrating sifter,which uses upright motor as the source of vibration ,is suitable for the quick separation and filter of any powder, particle, liquid in the foodstuff,chemical pharmaceutical, grinding, ceramic and metals processing,etc. Feathers: 1. High efficiency, compact design and durability. 2. The unique grid design, shorten the time for net works, easy to operate. 3. Full sealing, and no powder overflow, 4. The material discharged automatically, you can work.continuously. 5. Make use of vertical vibration motor, mechanical drive, the transfer process without loss of the exciting force, the effective transfer to the screen surface.Small size, take up little space, easy to move.
| Model | Nominal diameter(mm) | Layer |
|
Max feeding(mm) | Frequency(rpm) | Power(KW) | |
| RF-4 | 400 | 1-4 | 2-325 | Less 20 | 1500 | 0.37 | |
| RF-6 | 600 | 1-4 | 2-325 | Less 30 | 1500 | 0.75 | |
| RF-8 | 800 | 1-4 | 2-325 | Less 30 | 1500 | 0.75 | |
| RF-10 | 1000 | 1-4 | 2-325 | Less 30 | 1500 | 1.5 | |
| RF-12 | 1200 | 1-4 | 2-325 | Less 30 | 1500 | 1.8 | |
| RF-16 | 1600 | 1-4 | 2-325 | Less 50 | 1500 | 2.2 | |
| RF-18 | 1800 | 1-4 | 2-325 | Less 50 | 1500 | 2.2 | |
| RF-20 |
|
1-4 | 2-325 | Less 50 | 1500 | 2.5 | |
| RF-25 | 2500 | 1-4 | 2-325 | Less 50 | 1500 | 3.7 |
