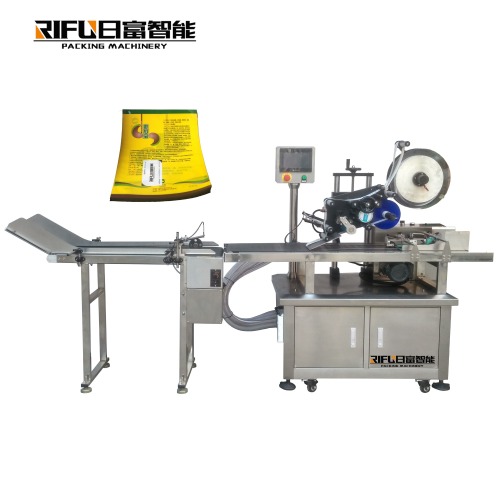

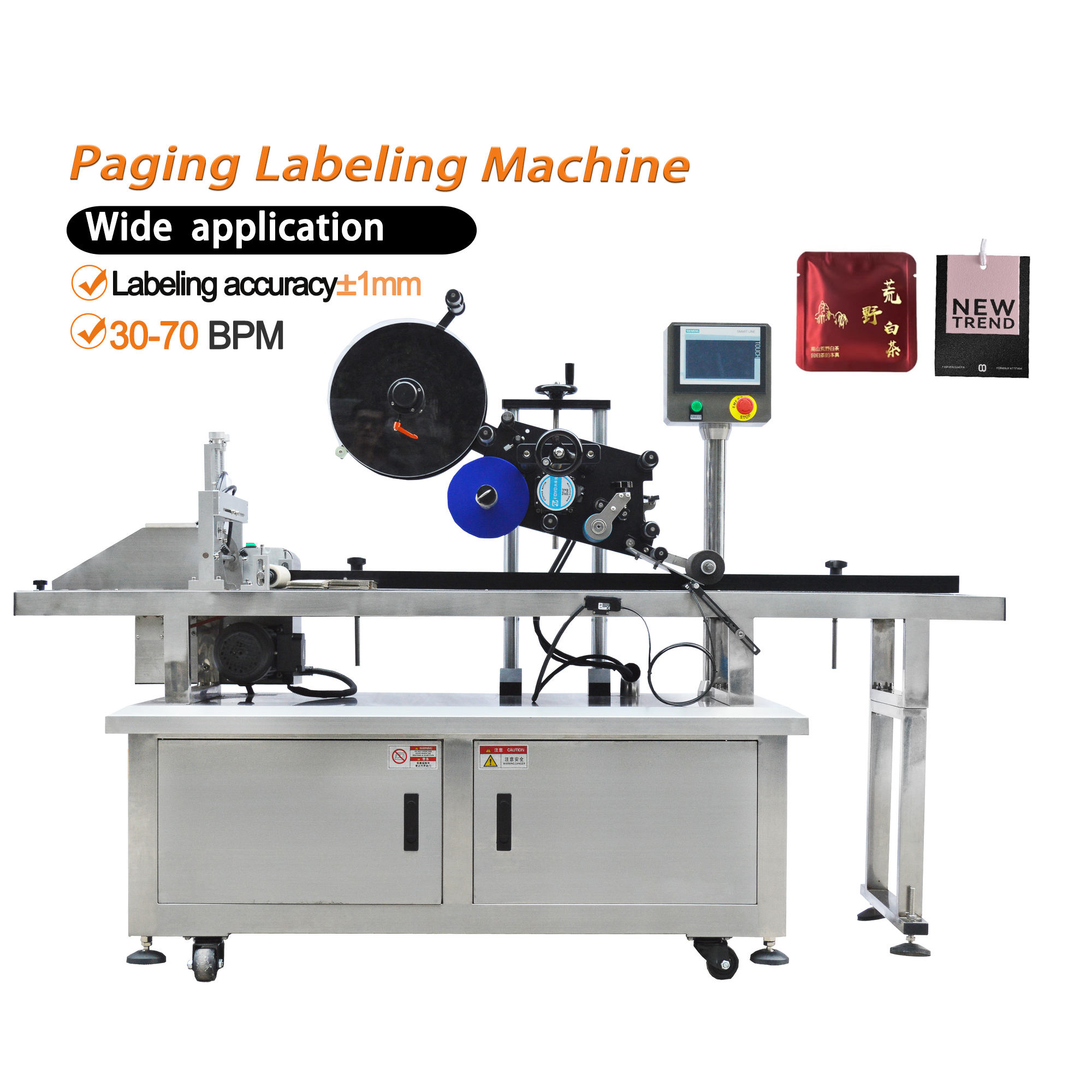

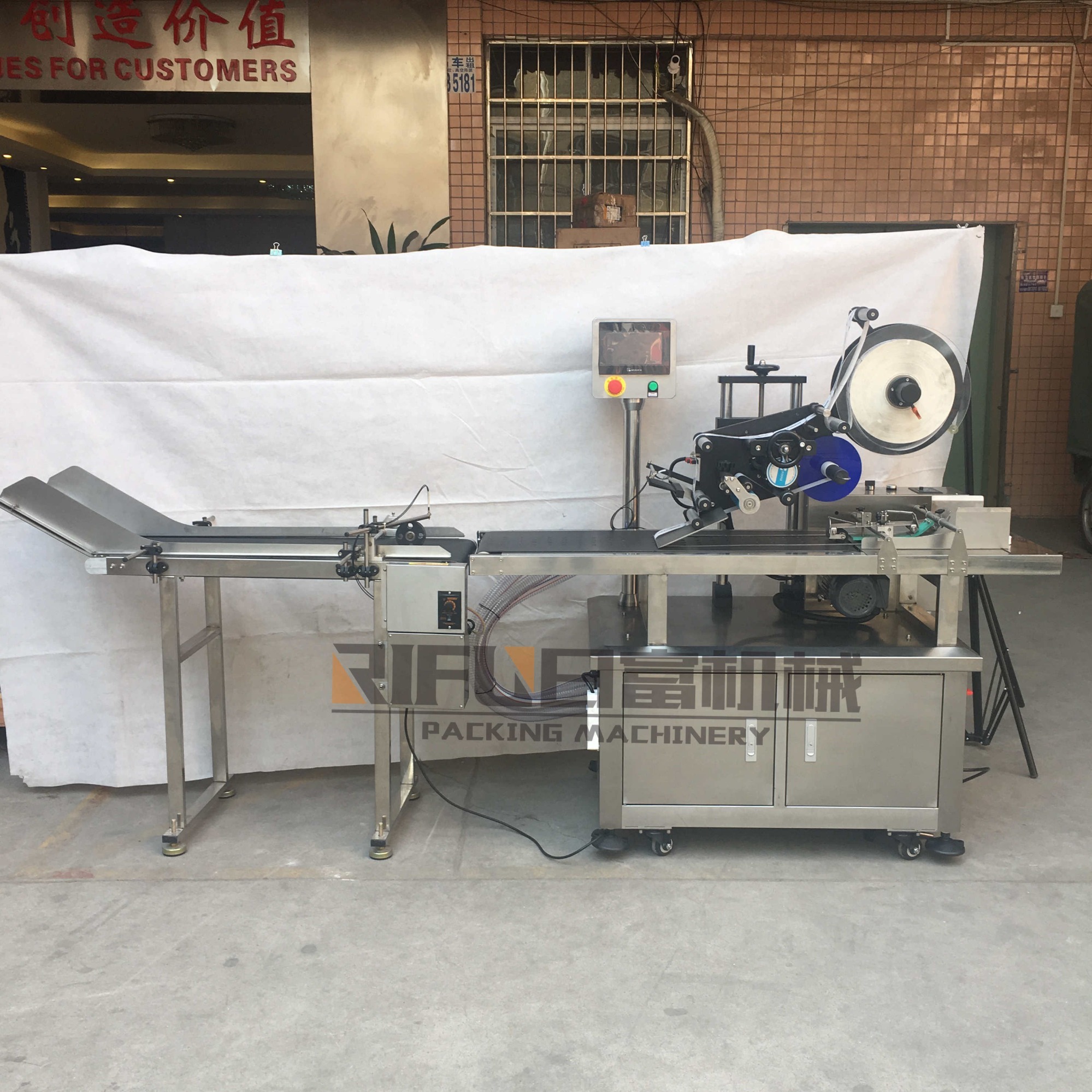

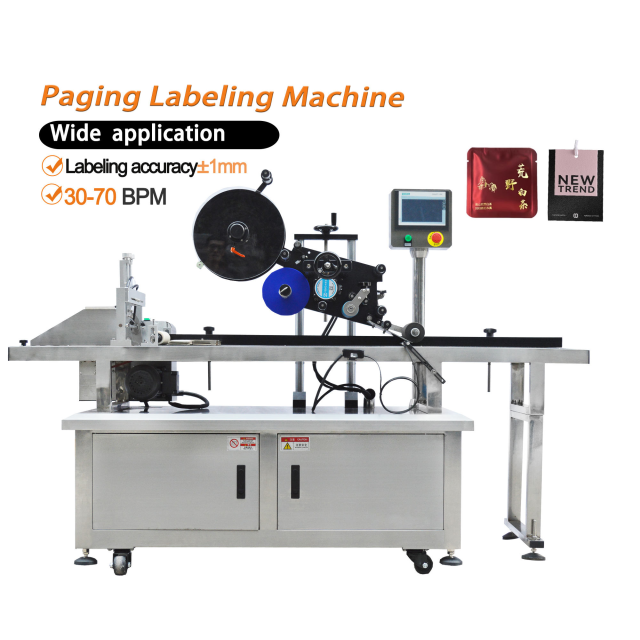

It can be used to label all kinds of card pouch, anti-static bag and paper piece. It is suitable for unfolded carton labeling. The labeling precision is stable, the press roller is used to caress the workpiece, the transportation is stable, no warping, and the labeling precision is guaranteed.
Main Features
1)Applicable to a wide range of cards, paper sheets of PE bags, tin foil bags, tea bags and other items labeling, suitable for unfolded carton labeling.
2) Intelligent control, automatic photoelectric tracking, prevent leakage and label waste.

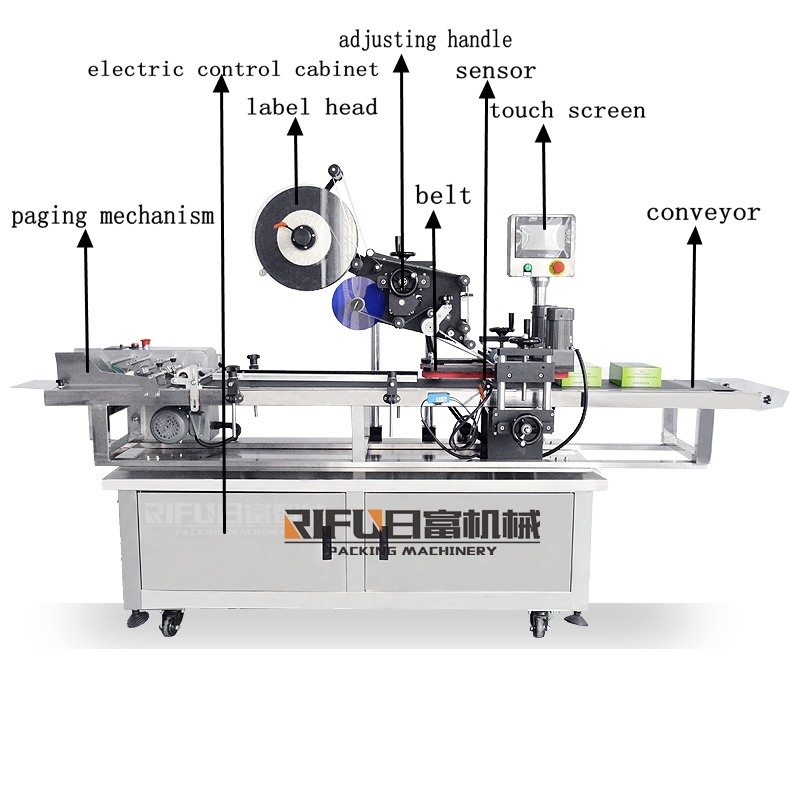

3) Sticker fast and steady, adopt the top roller to caress the workpiece, transport smoothly.
4)High stability, The supporting equipment runs 7 × 24 hour
5)It is made of full ss304 stainless steel,which is in line with the requirements of GMP production.
Label length | 10mm~300mm(can be customized) |
Label width | 10mm~150mm(can be customized) |
Product size | W50mm~200mm H0.2mm~3mm can be customized |
Roll Label outer diameter | 300mm~350mm(can be customized) |
Roll Label inner diameter | 70mm~75mm(can be customized) |
Accuracy | ±1mm |
Label speed | 30~200pcs/min |
Conveyor speed | 5~25m/min |
Suitable label type | Adhesive sticker label(Transparent lable is available) |
Working air pressure | 0.4-0.6Mpa |
Voltage | 220VAC ±10 50HZ |
Power | 2000W |
Weight | 260KG |
Overall dimension | 3000mm×800mm×1600mm |
