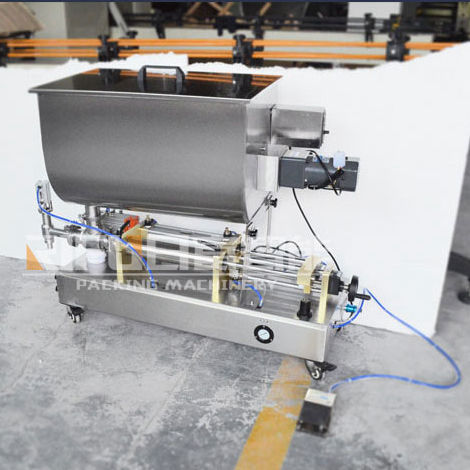

Semi automatic liquid piston filling machine
Horizontal pneumatic paste filling machine is an ideal equipment for filling paste and liquid. It is not only suitable for liquid and paste, but also for ethanol, gasoline and other flammable and explosive liquid filling.It is widely used in pharmaceutical, chemicals for daily use, food, pesticides and other industries.
Features
1. Higher safety: Full pneumatic design, no need to plug, higher safety factor.
2. Wide filling range: Can be used for ordinary paste and liquid filling, also can be used for gasoline, ethanol and other flammable and explosive liquid filling.
3. Two filling modes can be switched arbitrarily: Has two filling ways, foot and automatic.
4. 304 Stainless steel: Parts in contact with materials are made of 304 stainless steel, in line with food grade requirements.
5. Filling volume and speed can be adjusted: Filling volume adjustment handle, filling speed can be adjusted and filling accuracy is high
Filling volume
Filling range 10-100ml, 30-300ml, 50-500ml, 100-1000ml, 500-2500ml, 1000-5000ml.
| Filling range |
10-5000ml(Can be customized) |
| Filling speed |
5-20BPM |
| Filling accuracy |
±1% |
| Air pressure |
0.4-0.6MPa |
| Driven type |
Pneumatic |
| Required air compressor |
≥1.5KW 65L |
| Outline dimension |
1050*350*350 mm |
