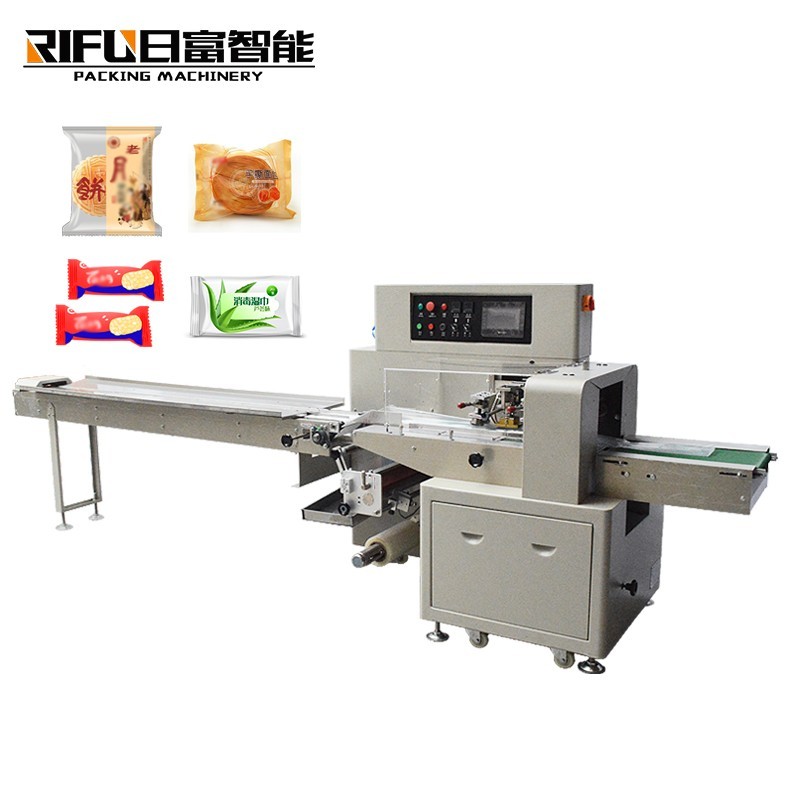

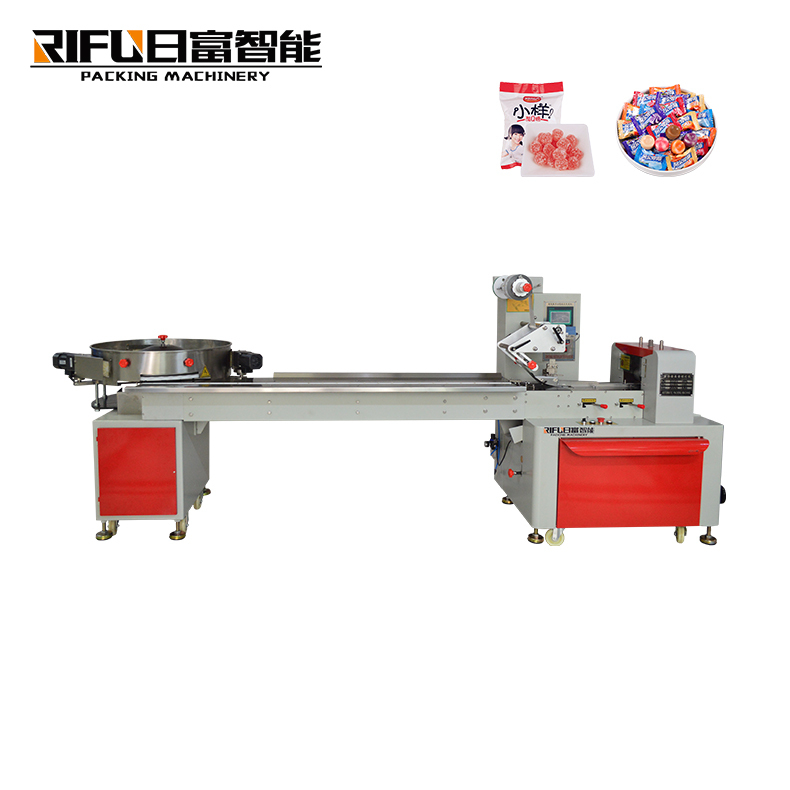

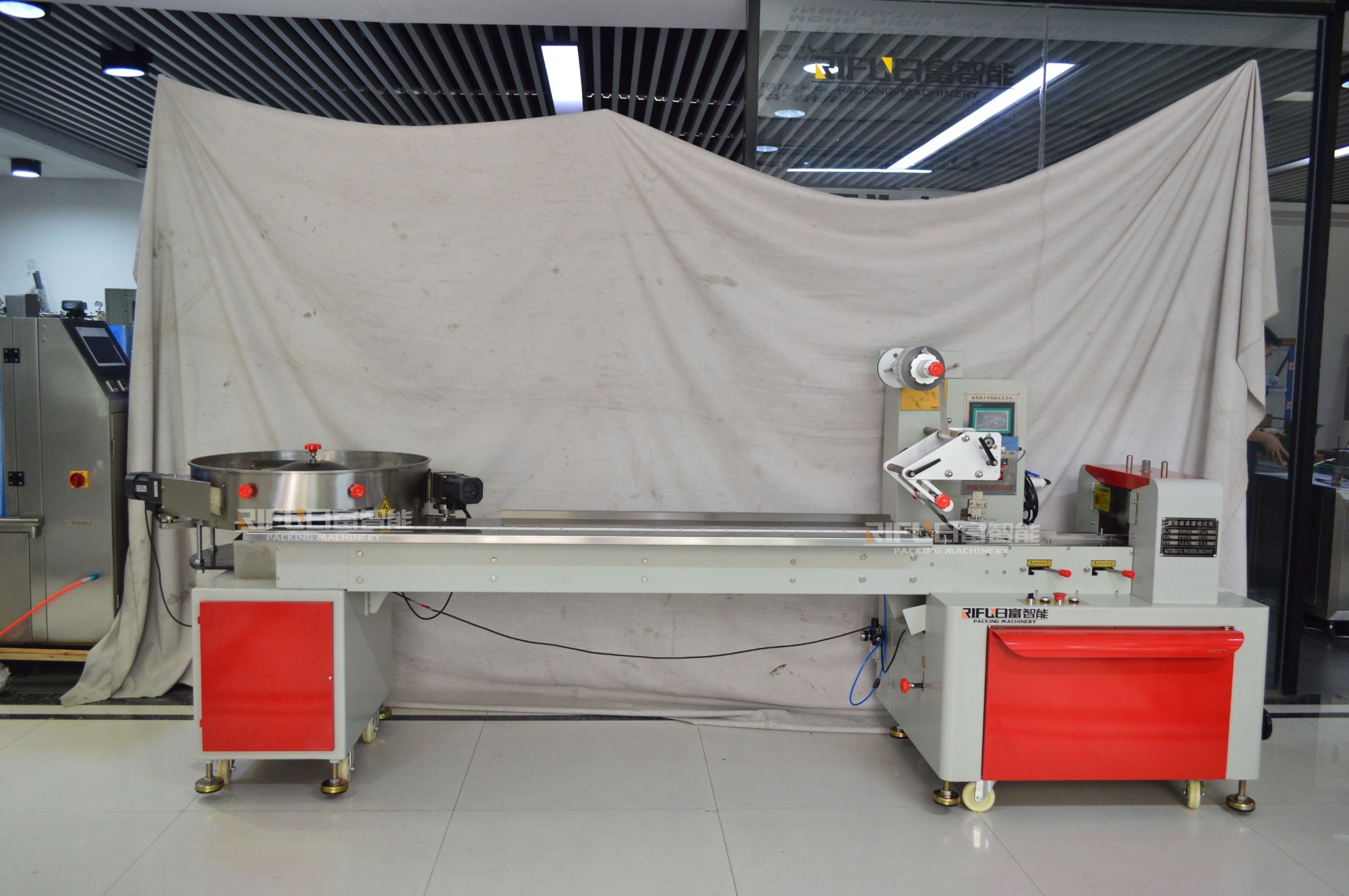

Automatic Pillow Packing Machine For Chocolates Hard Candy Toffee
The machine is used for packing various kinds of regular objects, like candy, chocolate, chewing gum. Suit for square, disc, cylindrical, kinked, oval and all kinds of special-shaped candies and solid blocks.
Features

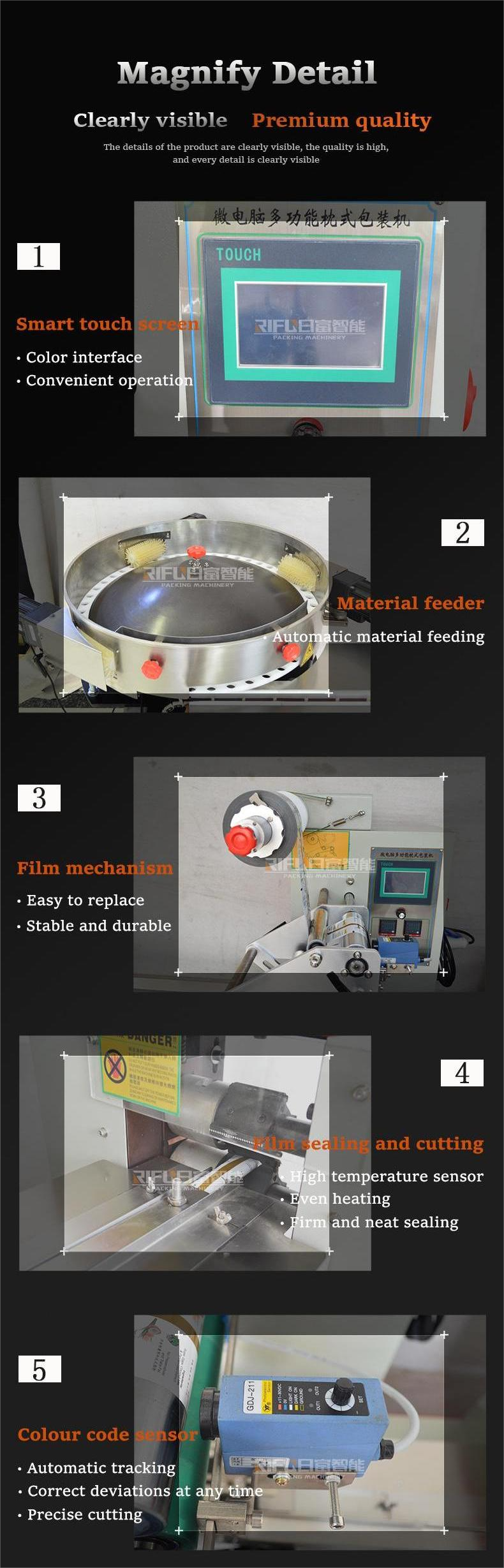

1.Three Servo control, automatically detect product length and cut, operator needn't to adjust the unloading working, saving time and saving films.
2.Human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4.High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing&cutting more accurate.
5.Separate PID control to temperature, suitable for various packing materials.
6.Stopping the machine in chosen position, no sticking to the knife and no waste packing film.
7.Simple driving system, reliable working, convenient maintenance.
8.All the controls are achieved by software, convenient for function adjusting and upgrading.
| Packing speed | 200-800bags/min(depending on products character and filling volume) |
| Max roll film width | 120mm |
| Bag length | 40-80mm |
| Bag width | 15-30mm |
| Max product height | 5-20mm |
| Power | 380V,AC,50HZ,3.5KW |
| Dimension | 3000*1350*1450 mm |
| Weight | 850kg |
