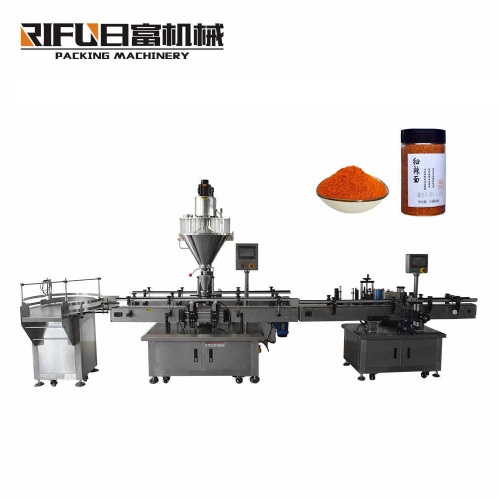

Automatic rotary type powder filling machine
The powder filling machine is developed and designed by our company on the basis of practice according to the needs of market development and conforms to the national GMP standard. The machine incorporates the latest European packaging technology concept, the design is more reasonable, more simple and more solid. Feeding, metering, filling, waste discharge and other work can be completed automatically. It is suitable for filling powder and granular materials, such as milk powder, monosodium glutamate, solid beverage, grape enamel, rice flour and so on.
|
|
Auger dosing model(Suitable for power and small granules products ) |
| Container size |
φ30—160mm H50—260mm(can be customized) |
| Filling weight |
Max5000(can be customized) |
| Filling accuracy |
≤100g,≤±0.5-1g ,100 – 500g,≤±1% |
| Filling speed |
60-80 bottles/min(depend on the material and weight) |
| Power supply |
110V/220V/380V |
| Total power |
2.3KW |
| Total weight |
390KG |
| Dimension |
2000*1070*2120mm |
