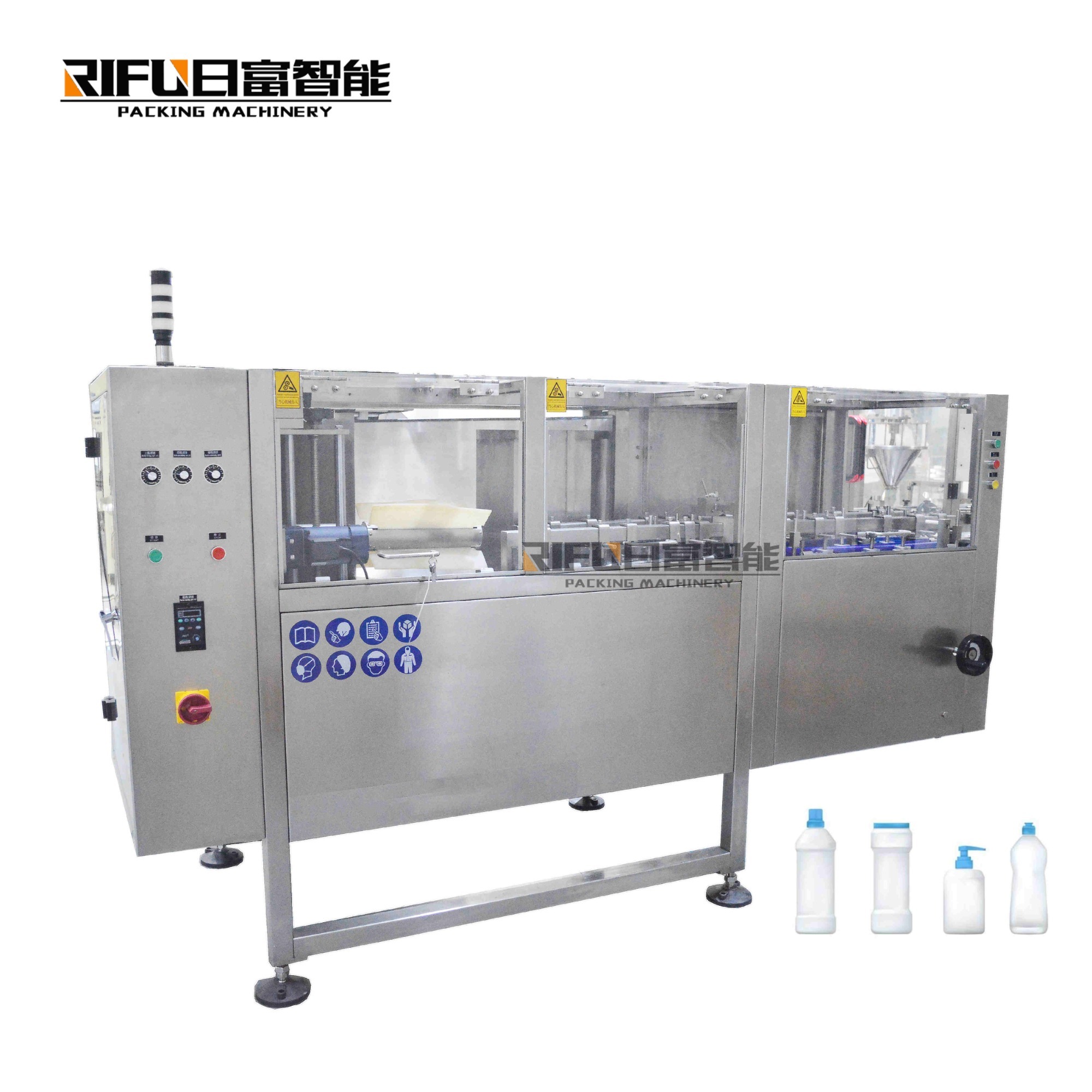

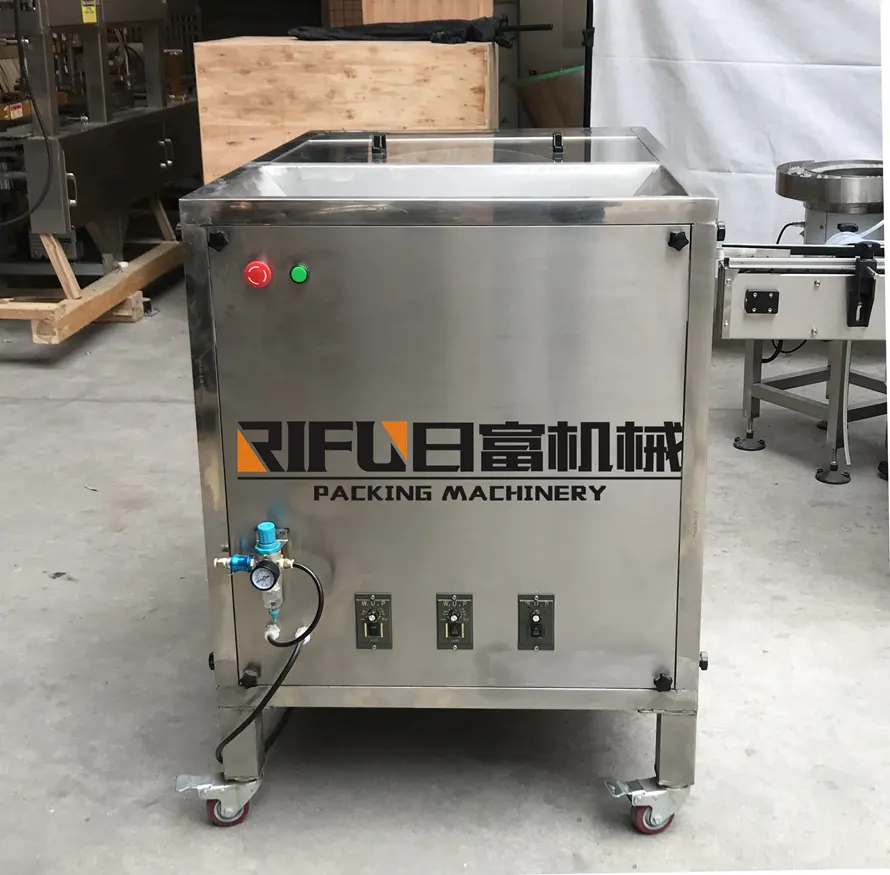

High Speed Automatic Plastic Bottle Unscrambler Machine

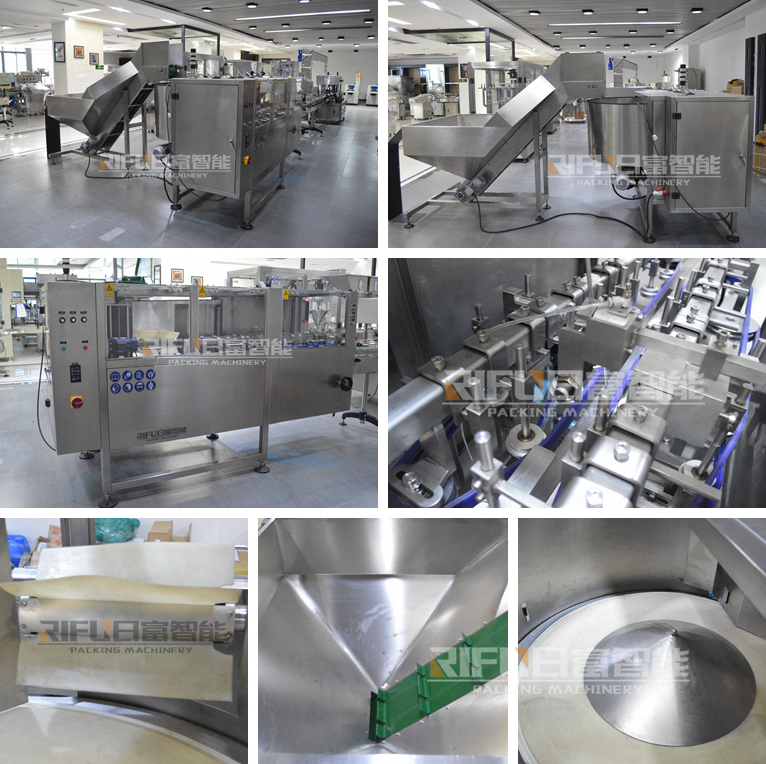

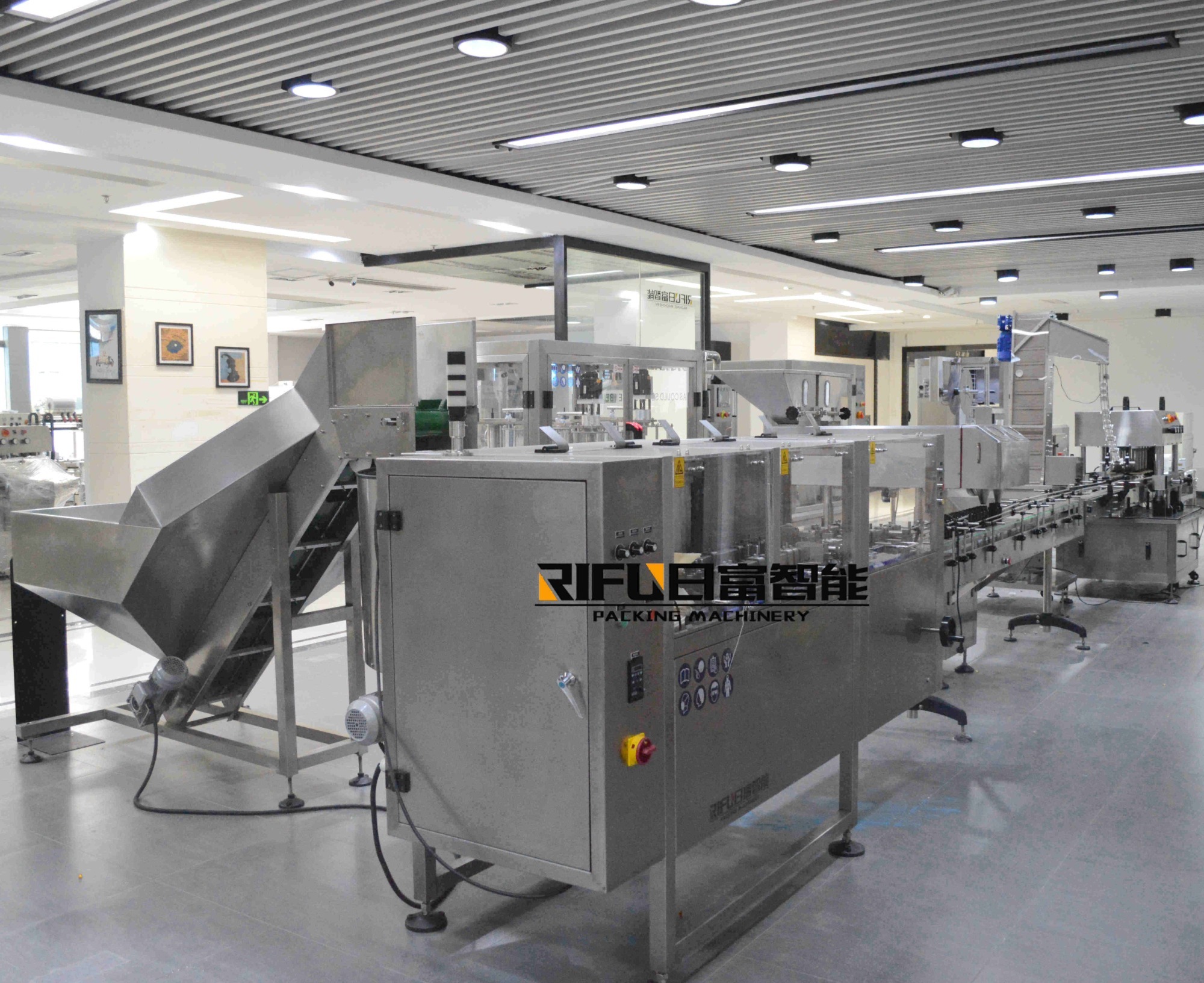

A bottle unscrambler is to feed bottles automatically at desired speeds eliminating the expensive, inefficient manual labor of this process. Bottle unscramblers receive the bottles in random positions since containers are thrown randomly into a large hopper that can hold thousands of bottles. Then those bottles are handled in different ways from the hopper to other parts of the machines, so they are sorted until you get a standing bottle directly in your conveyor going to a bottle filler then to a capping machine, labeler and the rest of the filling line.
It sorts different size and shape bottles automatically and places the containers on a conveyor. The unscrambler adopts electronic timing system. The operation is easy and stable. It is useful widely in the pharmacy, food & beverage, cosmetic & personal care industries.
|
Machine Speed
|
Up to 200 bpm
|
|
Container Types
|
Round,Square,&Oblong
|
|
Construction
|
Stainless Steel,Anodize Aluminum,UHMW Plastic
|
|
Containers Sizes
|
Applicable Bottle Diameter：Φ45－90mm
|
Applicable Bottle Height：80-240mm
|
|
Power Requirements
|
220/110 vac,32amps,60 Hz(other voltages available)
|
|
Air Requirements
|
8 CFM @80 psi
|
|
Dimensions
|
2600mm×1500mm×1500mm
|
|
Machine Weight
|
1250kg (approximate)
|
|
Hopper Capacty
|
500 liters
|
|
*Modifications for accommodating a wider range available as special request.
|
