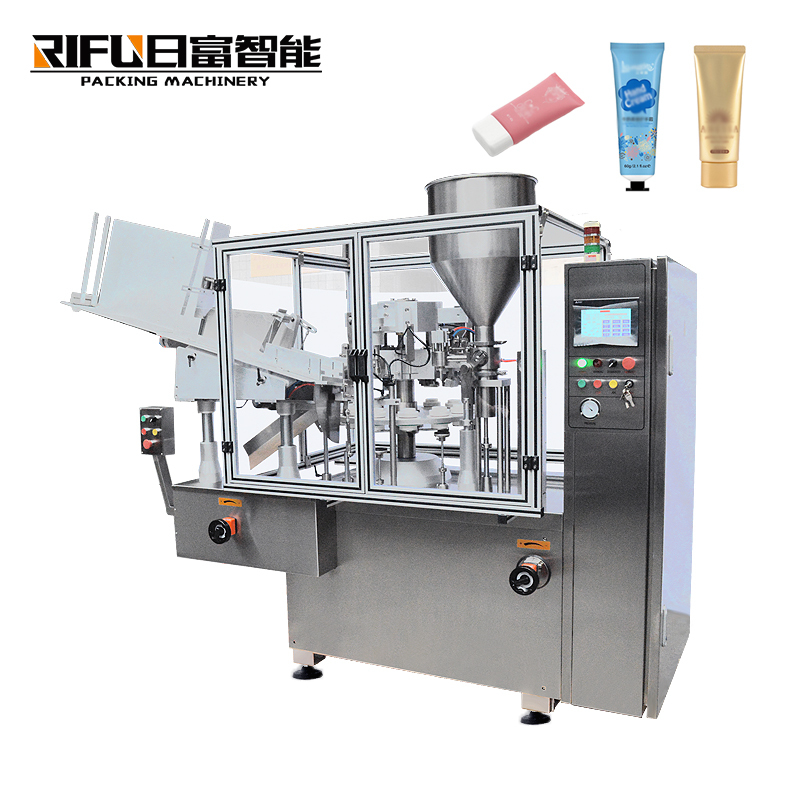

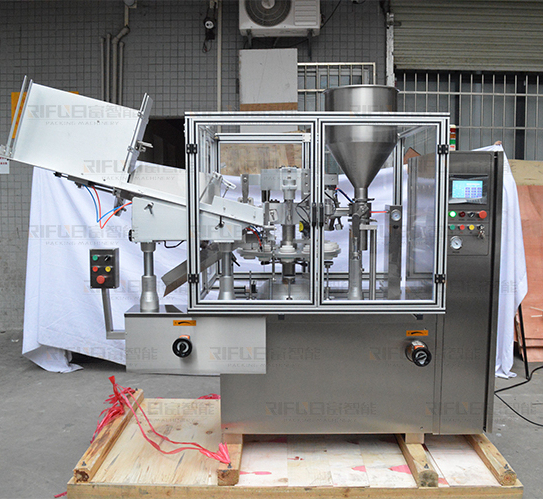

Automatic high speed soft tube filling sealing machine for toothpaste/cosmetic cream/ointment/shoes oil

Item No.: 00120
Min.Order Quantity: 1 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Guangzhou
Payment Terms: T/T,Western Union,paypal

Automatic high speed highspeed tube filling sealing machine

The product is suitable for automatic color code aligning, filling, sealing, date printing and end cutting of various plastic tubes and aluminum composite tubes. It is widely applied in daily chemical industry, medicine, food, etc.

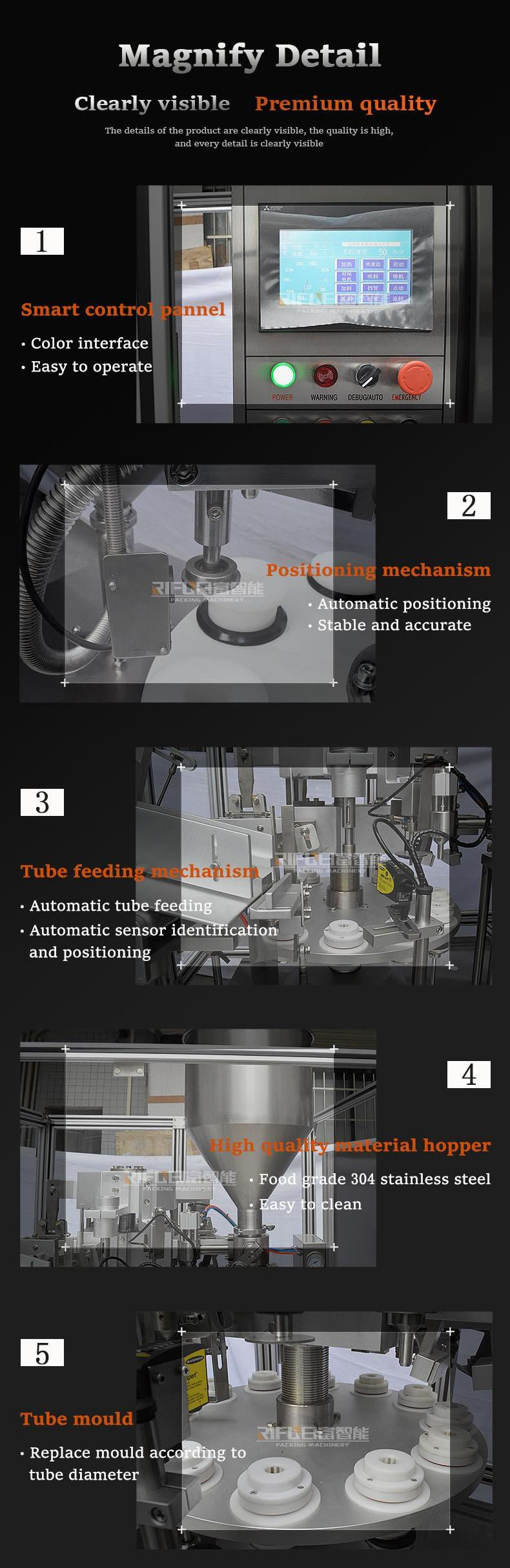

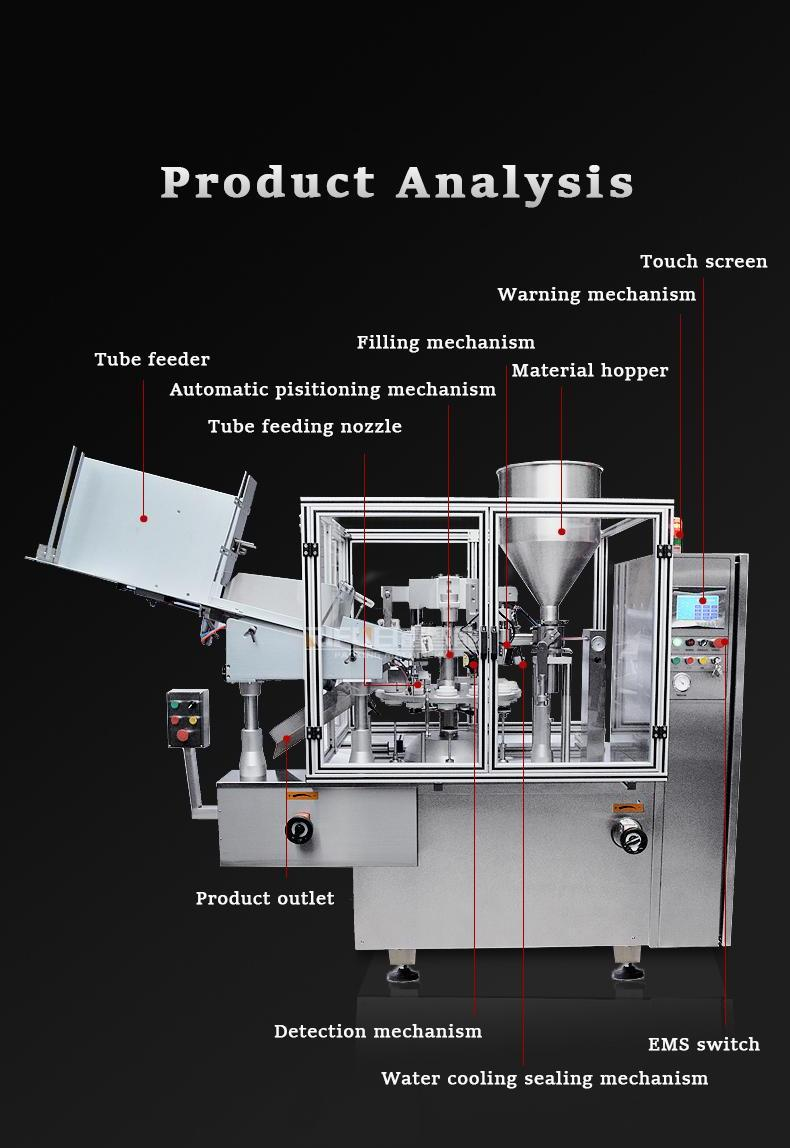

The machine adopts touch screen and PLC control. The automatic tube feeding, automatic positioning and imported rapid high- efficiency heater and highly stable flow meter form the hot air heating system. It has such features as firm sealing, high speed, no damage to the surface at the sealing place, beautiful and neat sealing shape. The machine can be equipped with filling heads of different specifications to meet the filling requirements of different viscosity. The organic glass dust cover is also provided.

Voltage (V/Hz)                               AC 220V/50HZ 110V/60HZ
Power 2KW
Gas source 0.6-0.8(MPa)
Tube mateial Aluminum,Plastic
Tube diameter 10-50mm(Can be customized)
Tube length 60-250mm(Can be customized)
Gas consumption 0.3(m³/min)
Measuring accuracy ±0.5~1%
Machine material Stainless steel
Capacity 55-65(pcs/min)
Outline dimension 2620L×1020W×1980H(mm)
