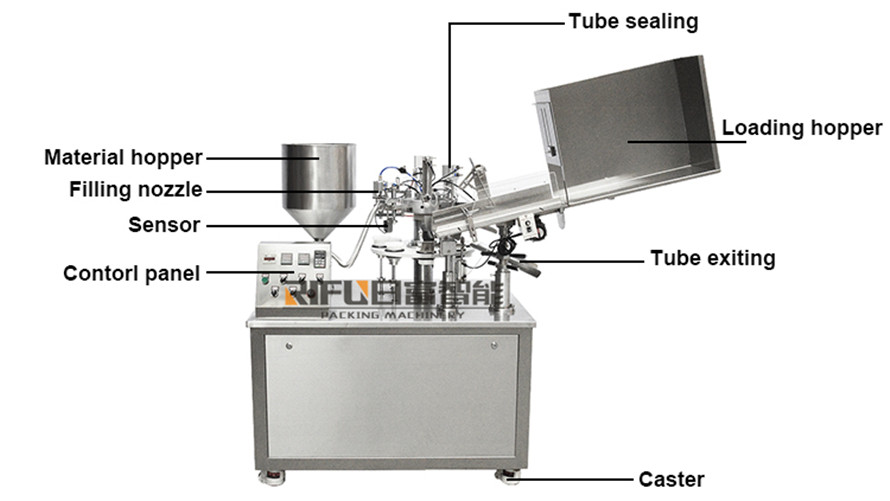

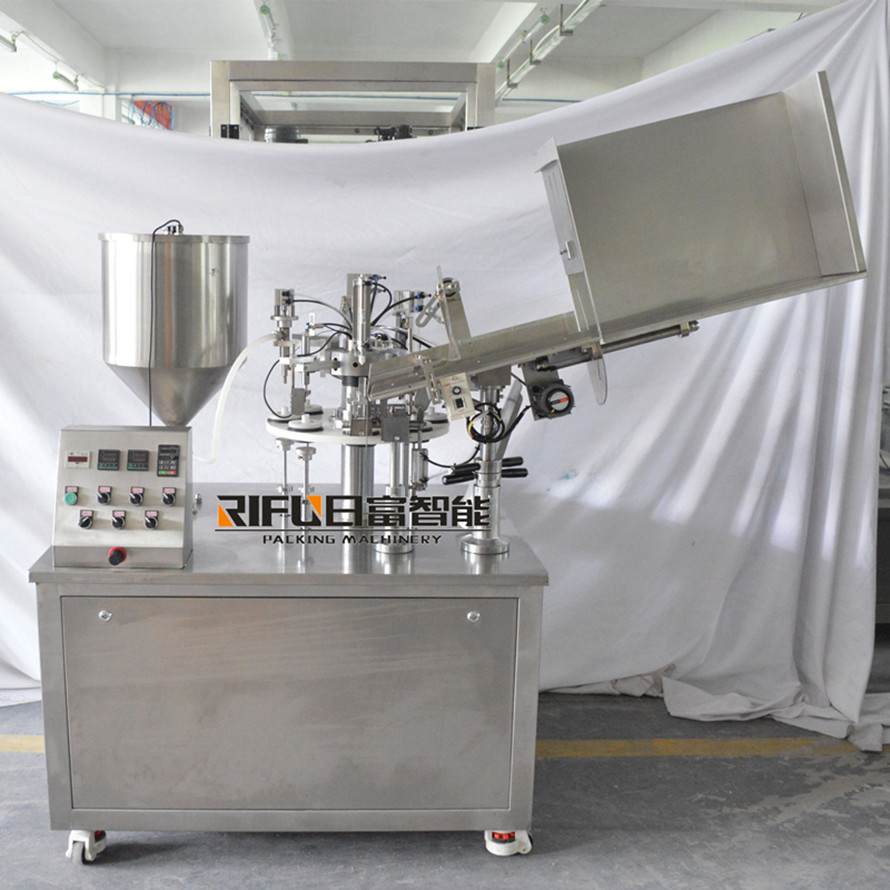

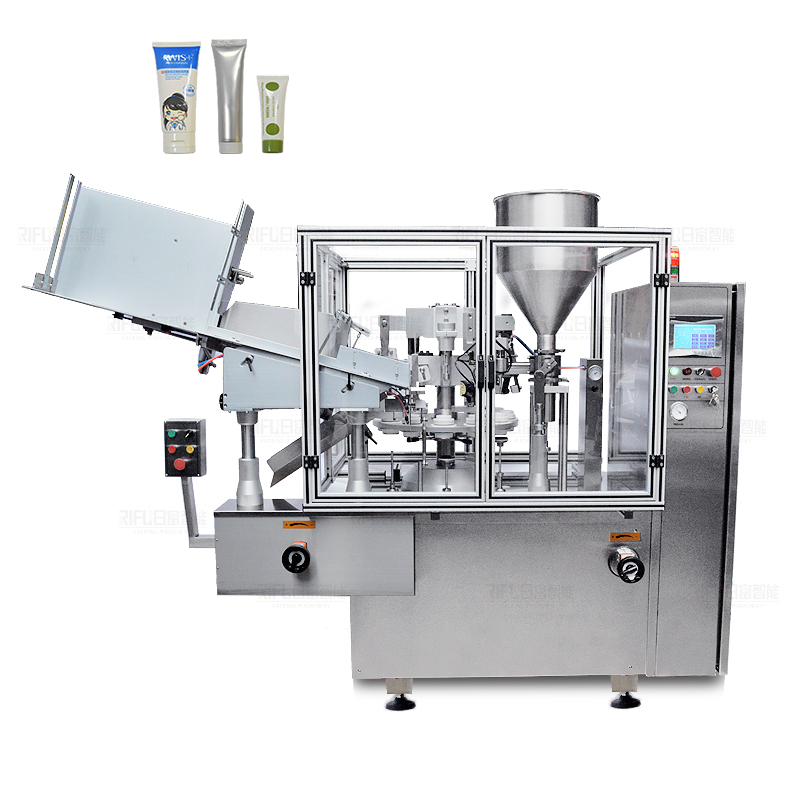

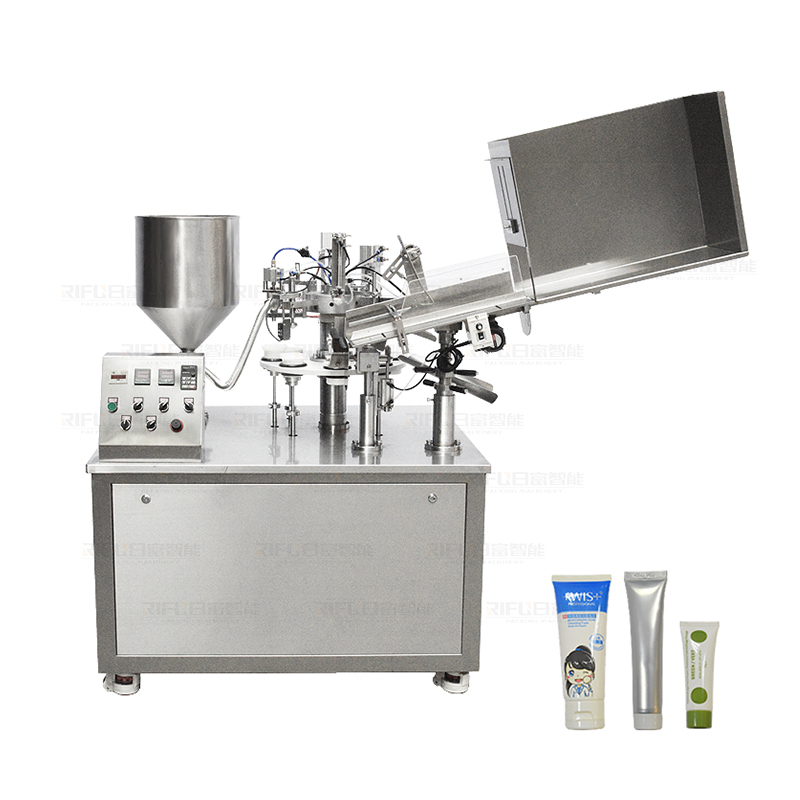

Automatic soft tube filling and sealing machine
The product is suitable for automatic color code aligning, filling, sealing, date printing and end cutting of various plastic tubes . It is widely applied in daily chemical industry, medicine, food, etc.
Feature:
The machine adopts touch screen and PLC control. The automatic tube feeding, automatic positioning and imported rapid high- efficiency heater and highly stable flow meter form the hot air heating system. It has such features as firm sealing, high speed, no damage to the surface at the sealing place, beautiful and neat sealing shape. The machine can be equipped with filling heads of different specifications to meet the filling requirements of different viscosity. The organic glass dust cover is also provided.
| Voltage (V/Hz) |
AC 220V/50HZ 110V/60HZ |
| Power |
2KW |
| Gas source |
0.6-0.8(MPa) |
| Tube mateial |
Aluminum,Plastic |
| Tube diameter |
10-50mm（Can be customized） |
| Tube length |
60-250mm（Can be customized） |
| Gas consumption |
0.3(m³/min) |
| Measuring accuracy |
±0.5~1% |
| Machine material |
Stainless steel |
| Capacity |
20-40(pcs/min) |
| Outline dimension |
1230*700*1900mm |
| |
