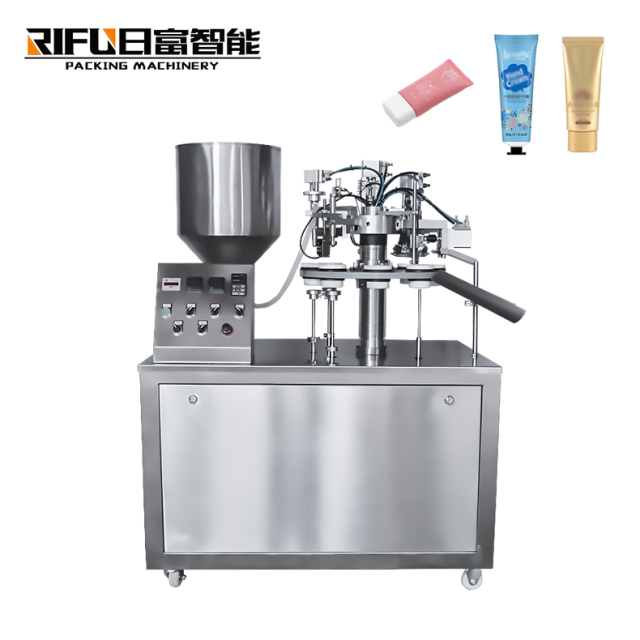

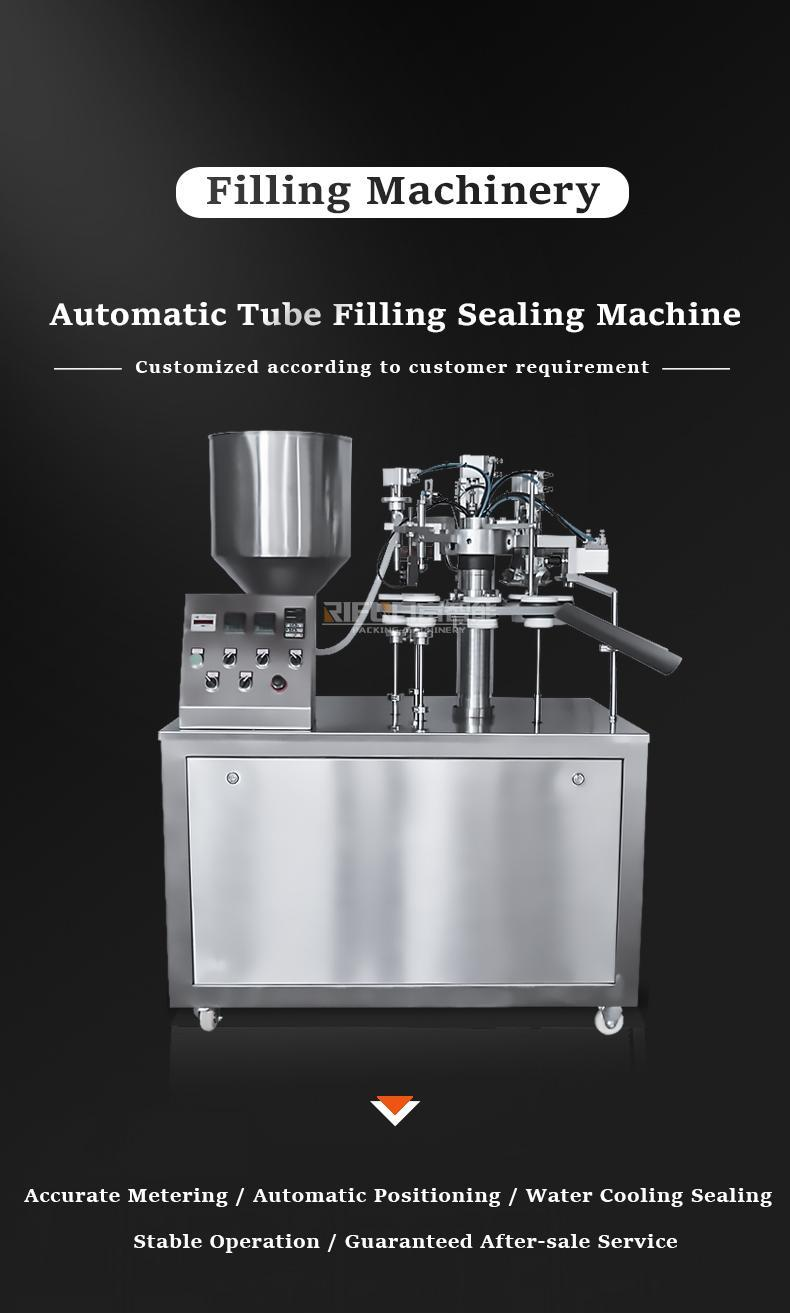

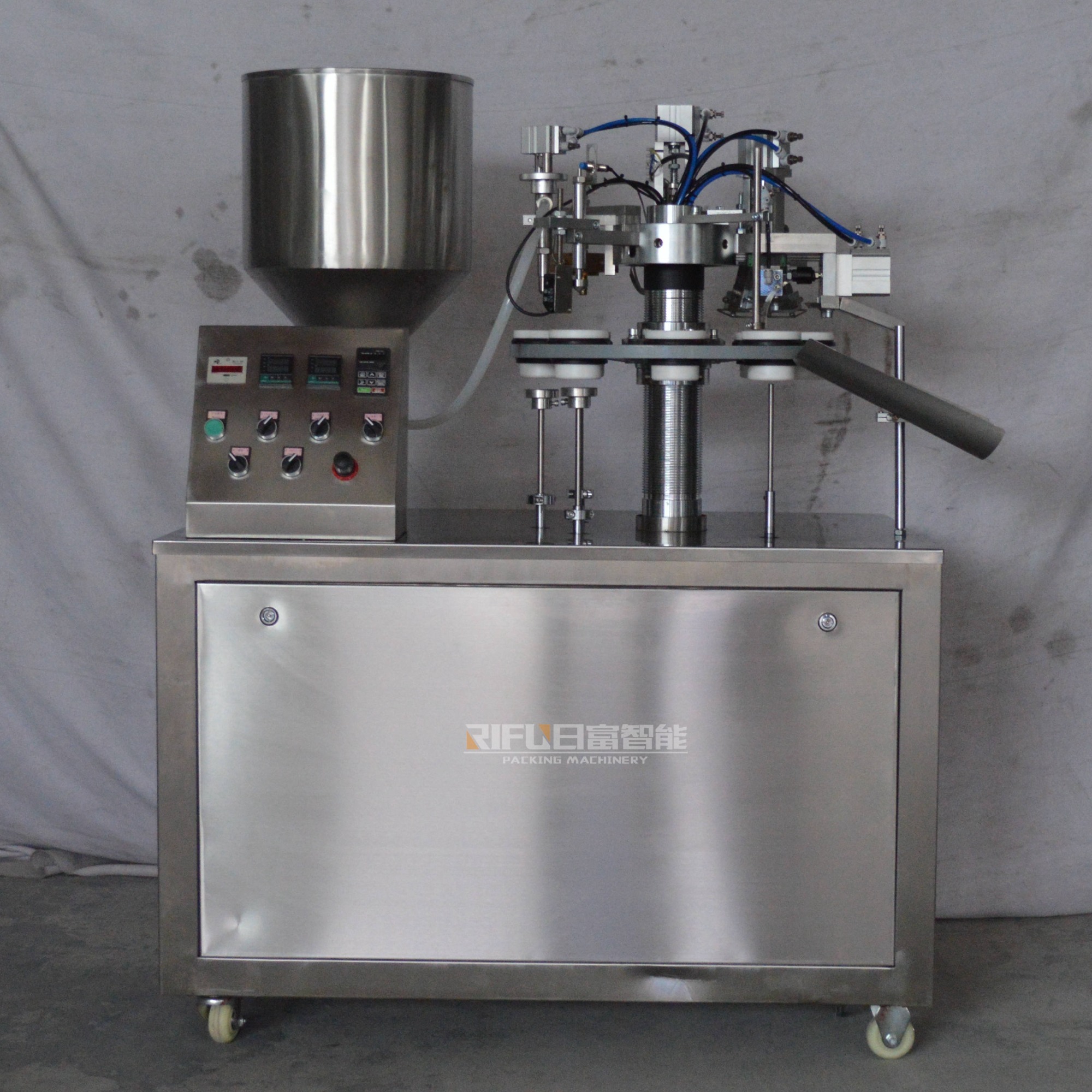

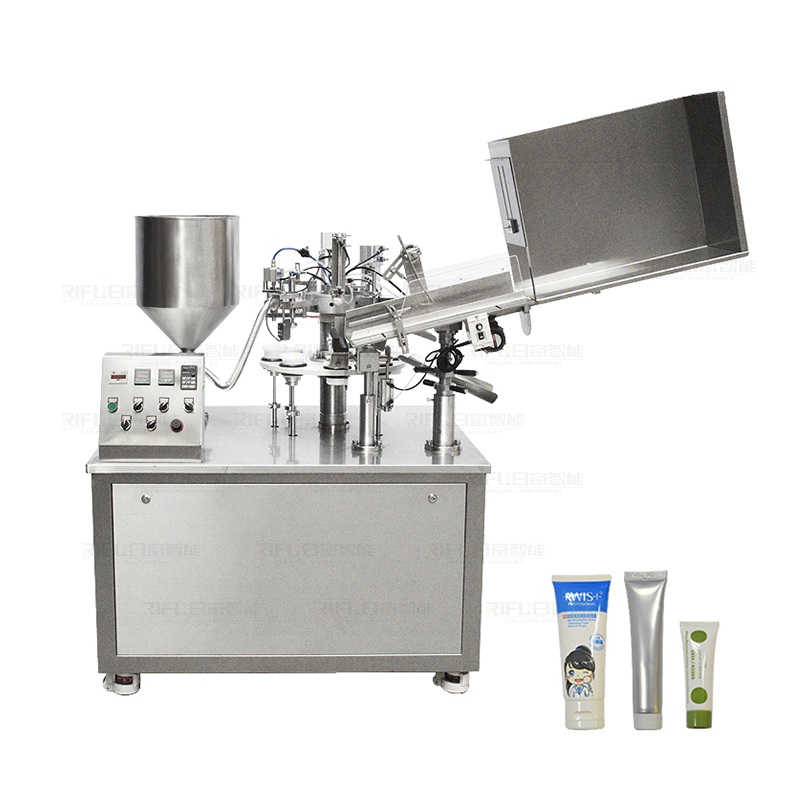

Semi automatic plastic tube filling and sealing machine
The product is suitable for automatic color code aligning, filling, sealing, date printing and end cutting of various plastic tubes. The machine adopts touch screen and PLC control. The automatic tube feeding, automatic positioning and imported rapid high- efficiency heater and highly stable flow meter form the hot air heating system. The machine can be equipped with filling heads of different specifications to meet the filling requirements of different viscosity.
Voltage (V/Hz) | AC 220V/50HZ 110V/60HZ |
Power | 2KW |
Gas source | 0.6-0.8(MPa) |
Tube mateial | Aluminum,Plastic |
Tube diameter | 10-50mm(Can be customized) |
Tube length | 60-250mm(Can be customized) |
Gas consumption | 0.3(m³/min) |
Measuring accuracy | ±0.5~1% |
Machine material | Stainless steel |
Capacity | 20-40(pcs/min) |
Outline dimension | 1230*700*1900mm |
