Vacuum powder feeder machine pack load feeder for mixer

Item No.: 00273
FOB Price:
US $500 - 13000 / Set Get Latest Price
Min.Order Quantity:
1 Set/Sets
Supply Ability:
500 Set/Sets per Month
Port:
Guangzhou
Payment Terms:
T/T,Western Union,paypal
Description
Description

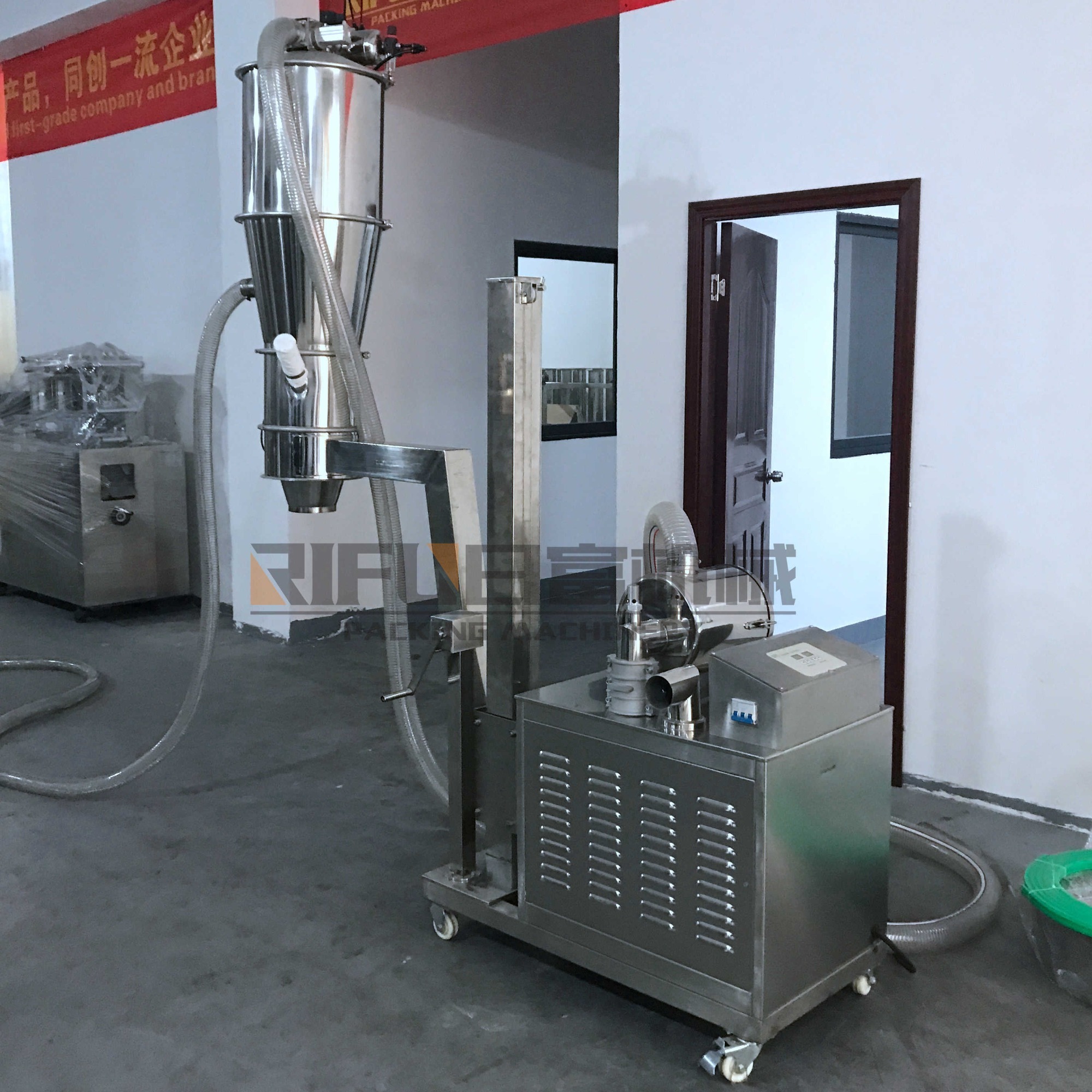

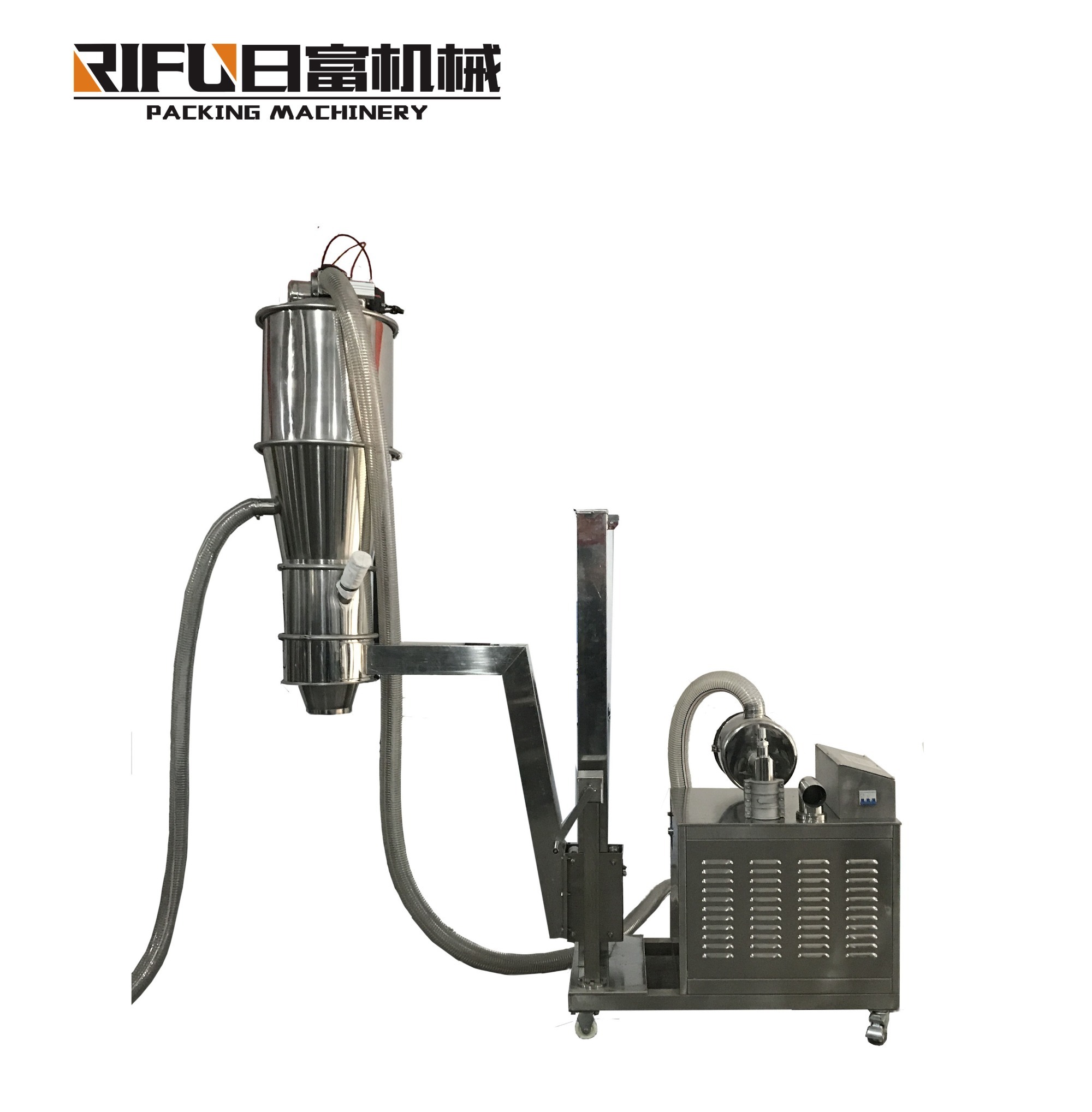

 Vacuum powder feeder machine

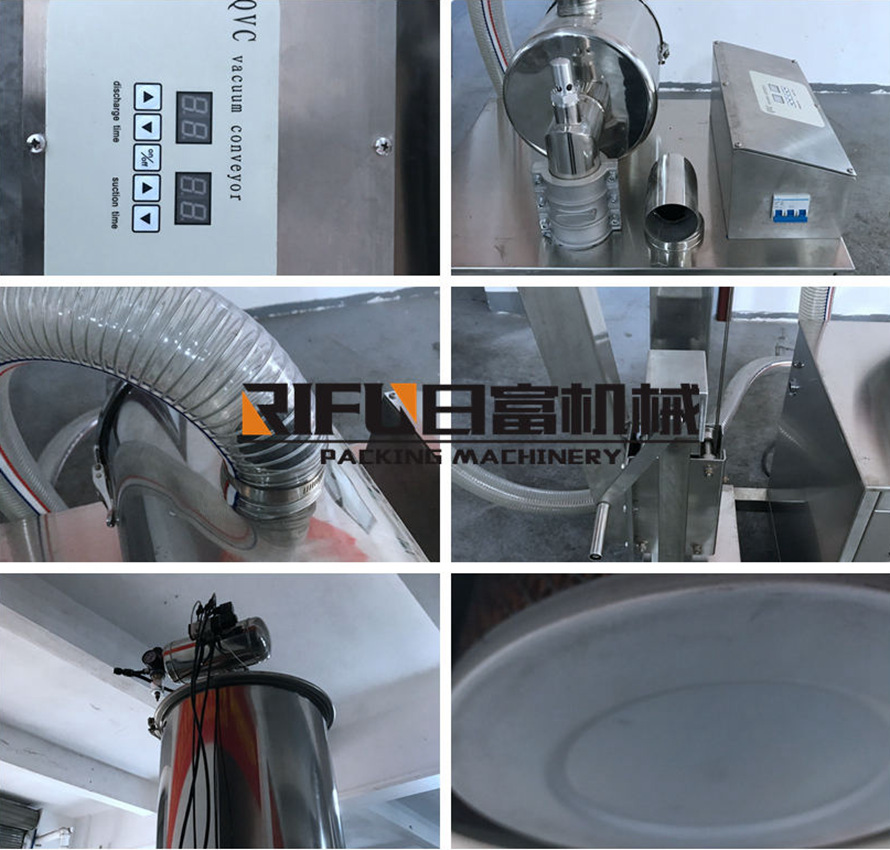

The vacuum feeder uses a vacuum pump to suction the air, so that the inlet of the suction nozzle and the whole system are in a certain vacuum state. The powder particles are sucked into the nozzle along with the outside air to form a gas stream, which passes through the suction pipe and reaches the hopper in the hopper. Gas and material separation. The separated material enters the receiving equipment. The feeding and discharging are completed by continuously opening and closing the pneumatic three-way valve, and the opening and closing of the pneumatic three-way valve is controlled by the control center.
The vacuum feeder is equipped with a compressed air back flushing device. Each time the material is discharged, the compressed air pulse back flushing the filter, and the powder adsorbed on the surface of the filter is dropped to ensure the normal operation of the suction.
For the vacuum feeder with material level control, the material in the hopper of the receiving equipment is automatically fed through the material level controller. When the hopper of the receiving equipment is higher than a certain position, the vacuum loading machine stops feeding; when the material level is lower than a certain position, the vacuum loading machine automatically starts to complete the feeding of the receiving equipment.





Model
Power(kw) Capacity (kg/h)
RF-1 1.5 400
RF-2 2.2 600
RF-3 3 1200
RF-4 5.5 2500
RF-5 5.5 3200
RF-6 5.5 3200
RF-7 7.5 6000
RF-10-6 7.5 6000
RF-20-5 11 6000

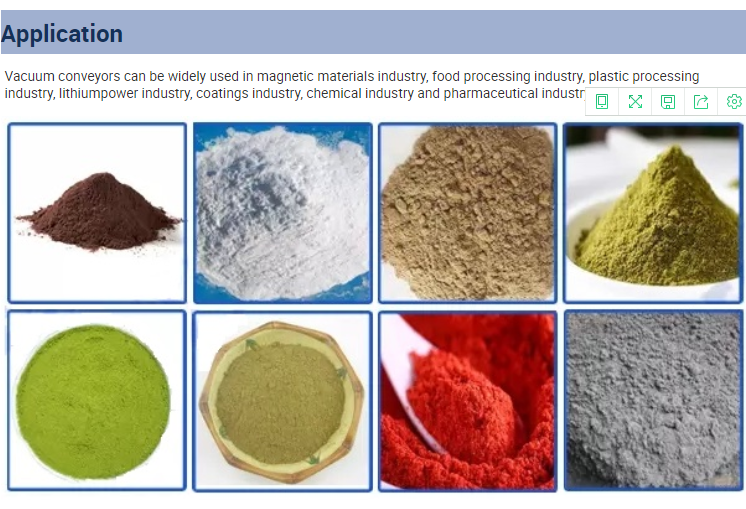

Application
Vacuum conveyors can be widely used in magnetic materials industry, food processing industry, plastic processing industry, lithiumpower industry, coatings industry, chemical industry and pharmaceutical industry etc.
