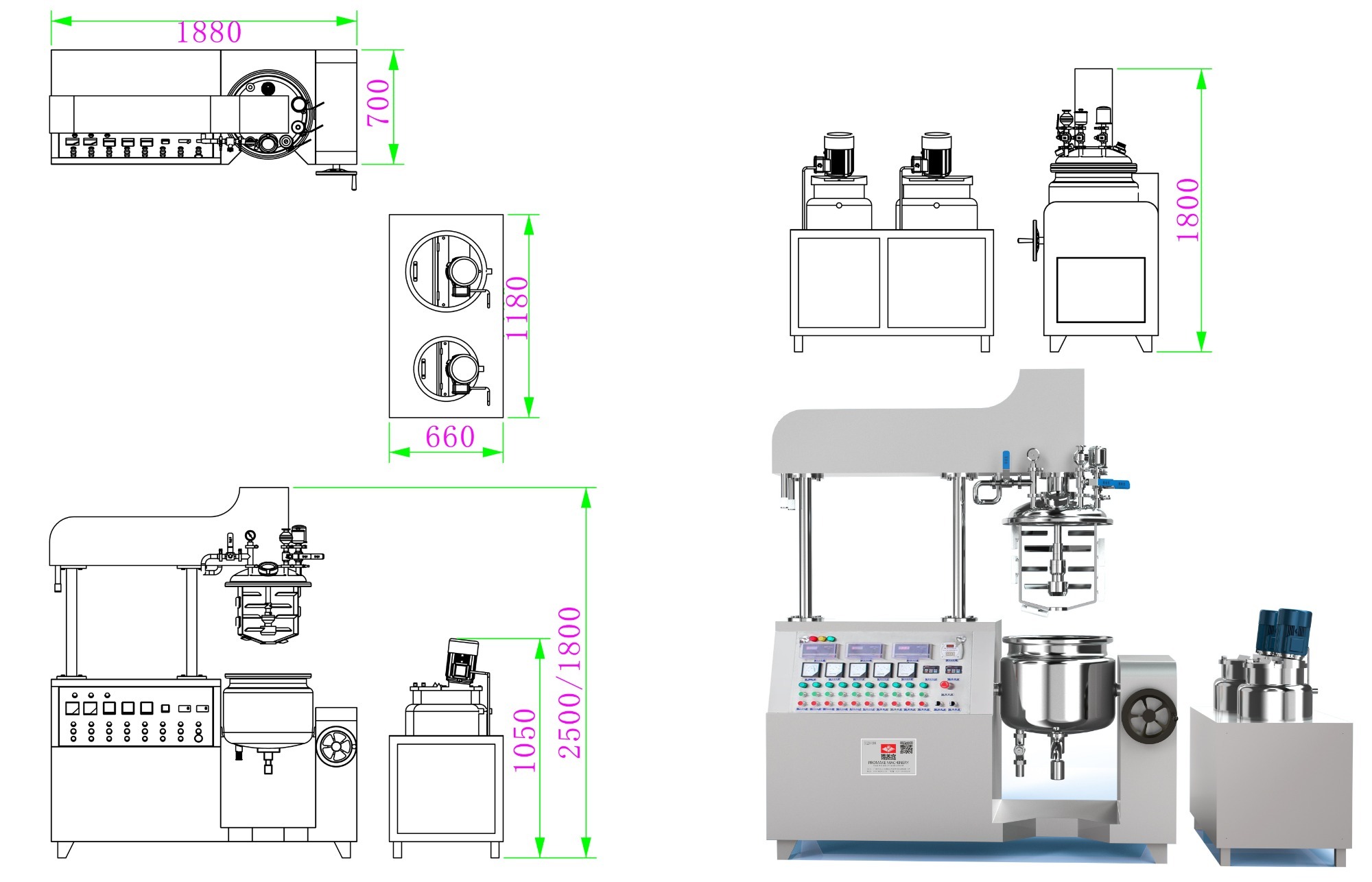

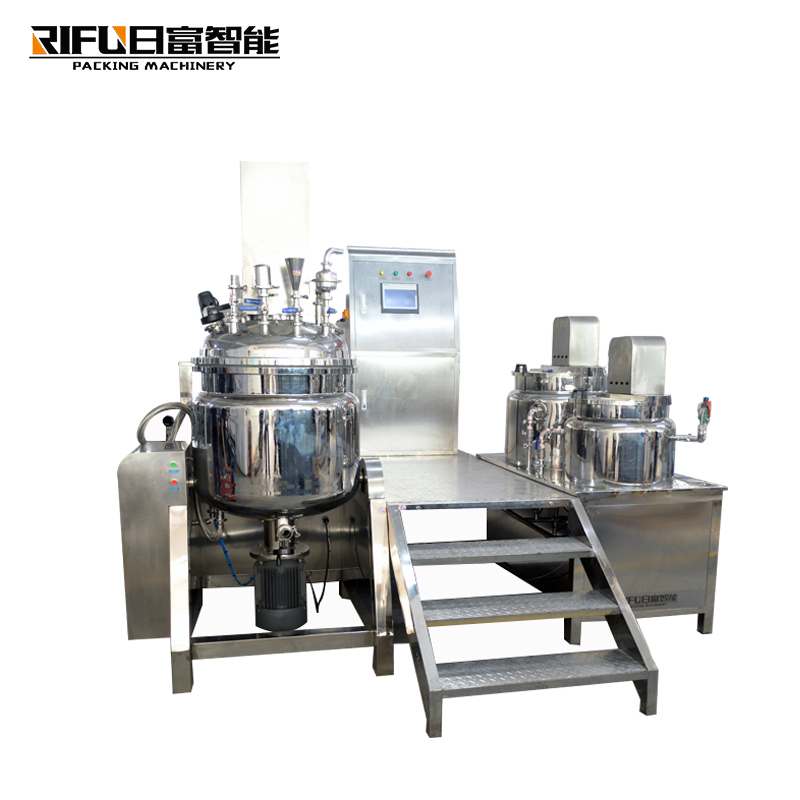

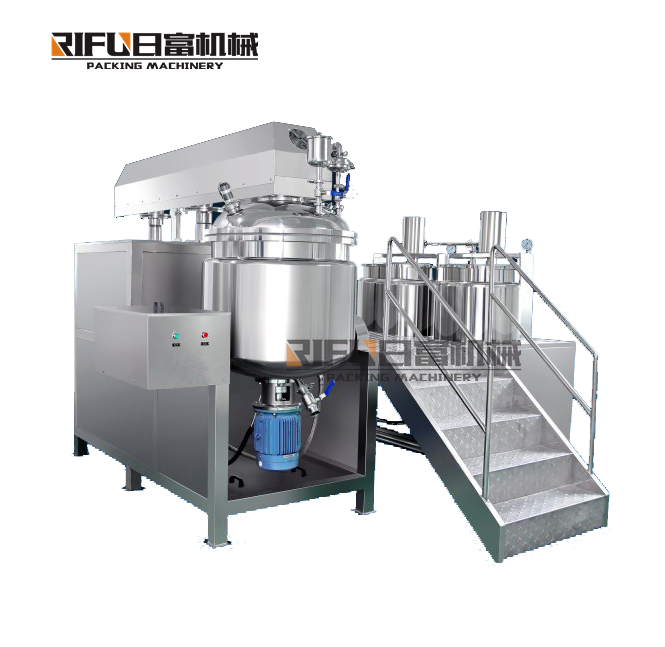

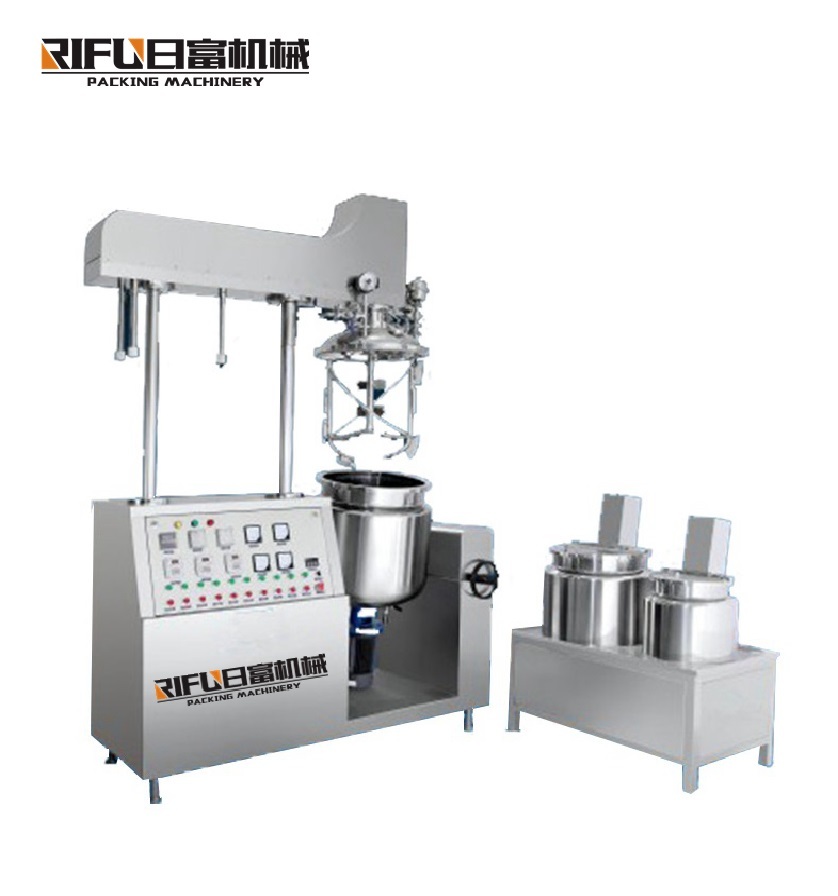

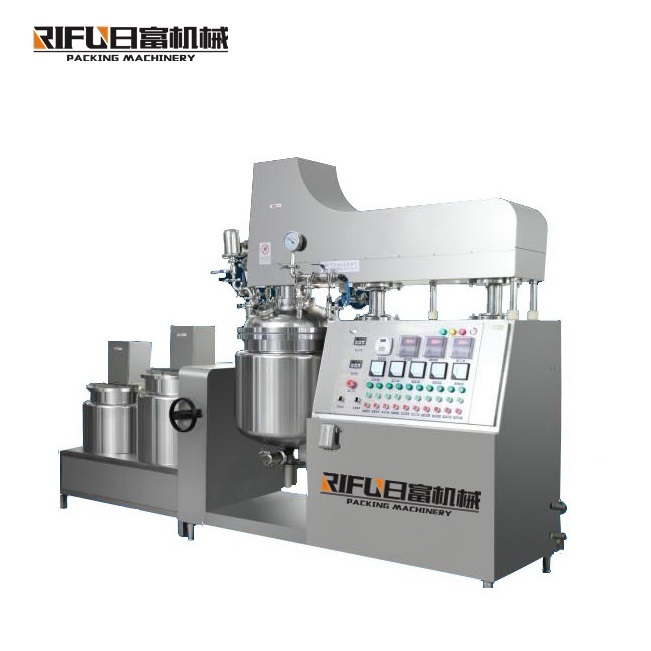

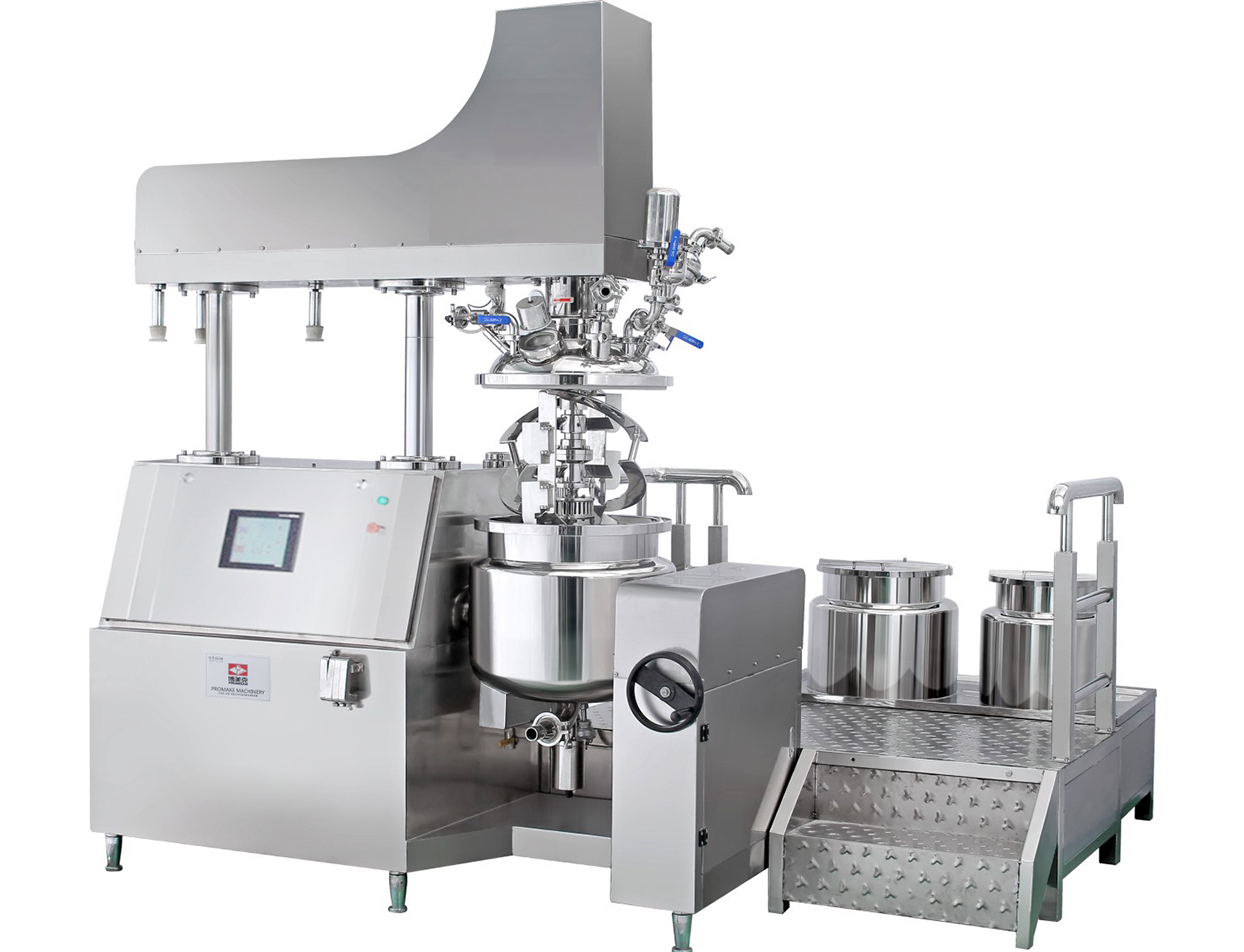

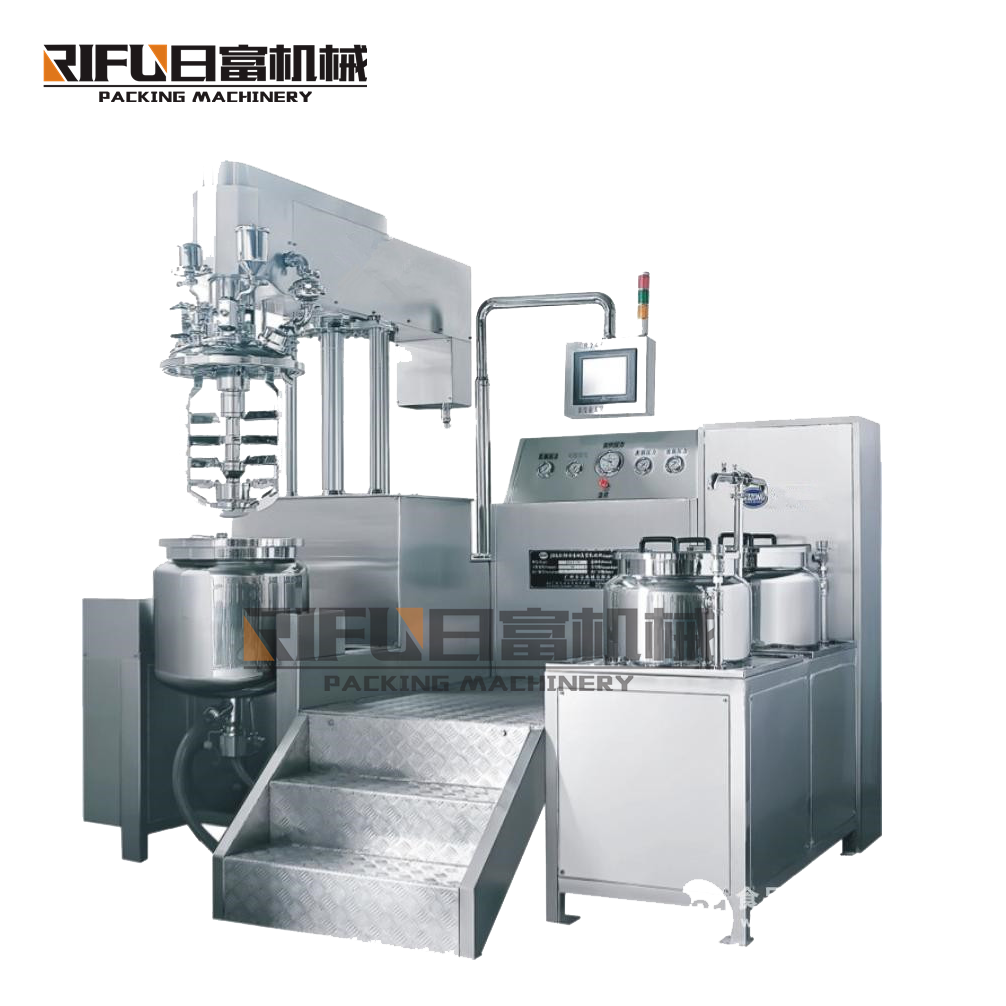

Vacuum homogeneous tank hydraulic lift function
with water and oil pot (200L)
Emulsification tank is under the action of centrifugal force generated by high speed rotating rotor, to material from the radial concentration, precision of narrow clearance between rotor and at the same time by centrifugal extrusion, such as impact force, make the material dispersion and mixing, emulsification. The machine has compact structure, small volume, light weight, easy to operate, the advantages of low noise and smooth operation, it has the characteristics of large is not grinding media in the production process, hydraulic lift function, high speed shearing, dispersing, vacuum homogeneous, mixing, crushing,electric heating into an organic whole.
Feature:
1.The emulsifying tank body adopts hygienic aseptic design;
2.Can be online CIP cleaning and online cleaning function.
3.The structure design is humanized, the operation is simple, the maintenance is convenient, no sealing leakage is more sanitary.
4.Appropriate diameter-height ratio design, energy saving, fast material mixing, high emulsification and homogenization efficiency.
5.Smooth operation and low noise.
6.Mirror polishing of the surface of the inner tank; All inlet and outlet orifice, mirror, manhole and other process openings and welding parts of the inner tank are flanged by circular arc transition process, smooth and easy to clean without dead Angle, to ensure the reliability and stability of the production process, in line with GMP standard requirements.
7.Equipped with temperature display control and external liquid level meter.
8.Main pot lid hydraulic lifting function. Pot body dumping function, easy to clean inside the pot.
9.Touch screen and PLC control.
|
Model |
RF-JR2 |
|
Inner form |
Vertical circular shape |
|
Hopper volume |
250L(can be customized) |
|
Appearance material |
(Frame,Flat) stainless steel 304 |
|
Working air pressure |
Ordinary pressure |
|
Supply voltage |
380V/220V/50-60Hz |
|
Weight |
200kg |
|
Motor power |
5KW 1000-3300RPM |
