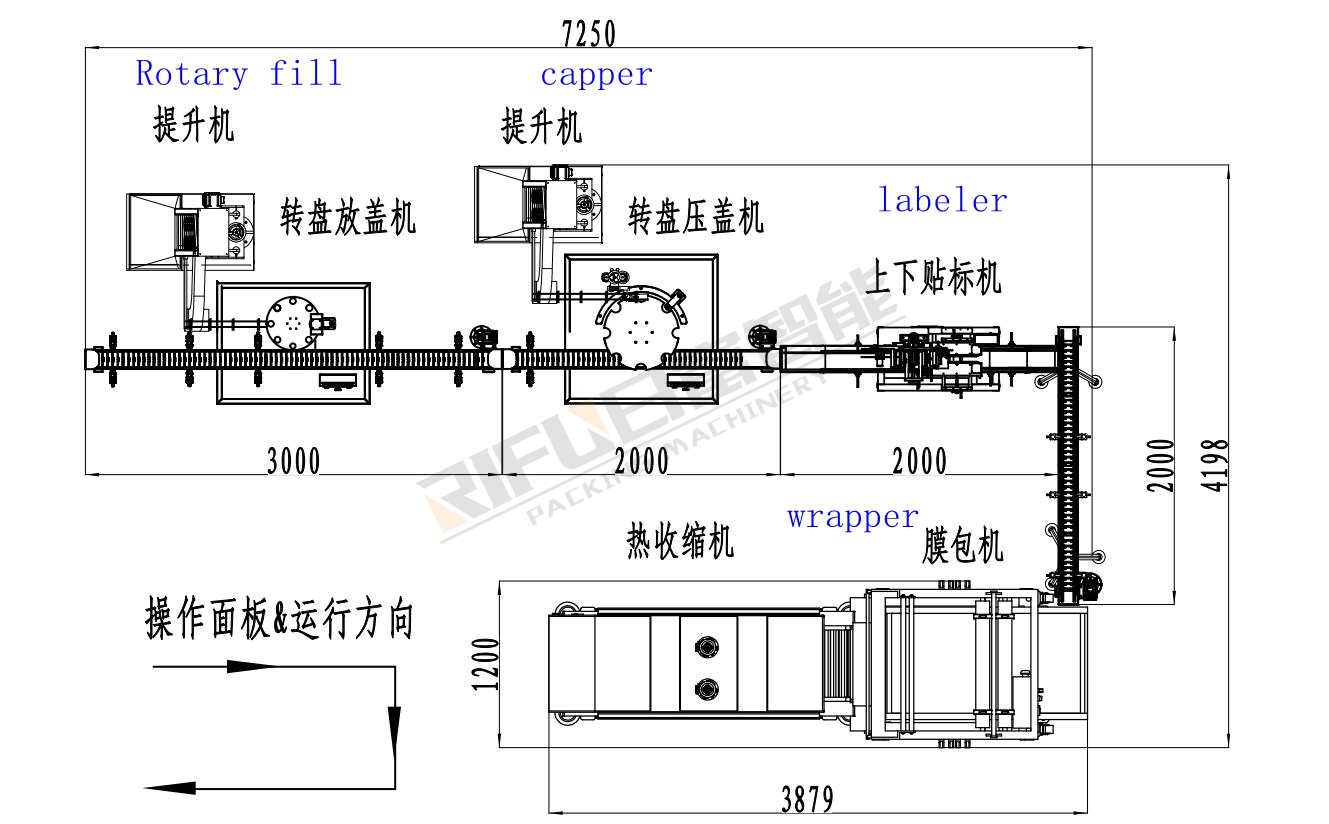

Full prodcution line drawing

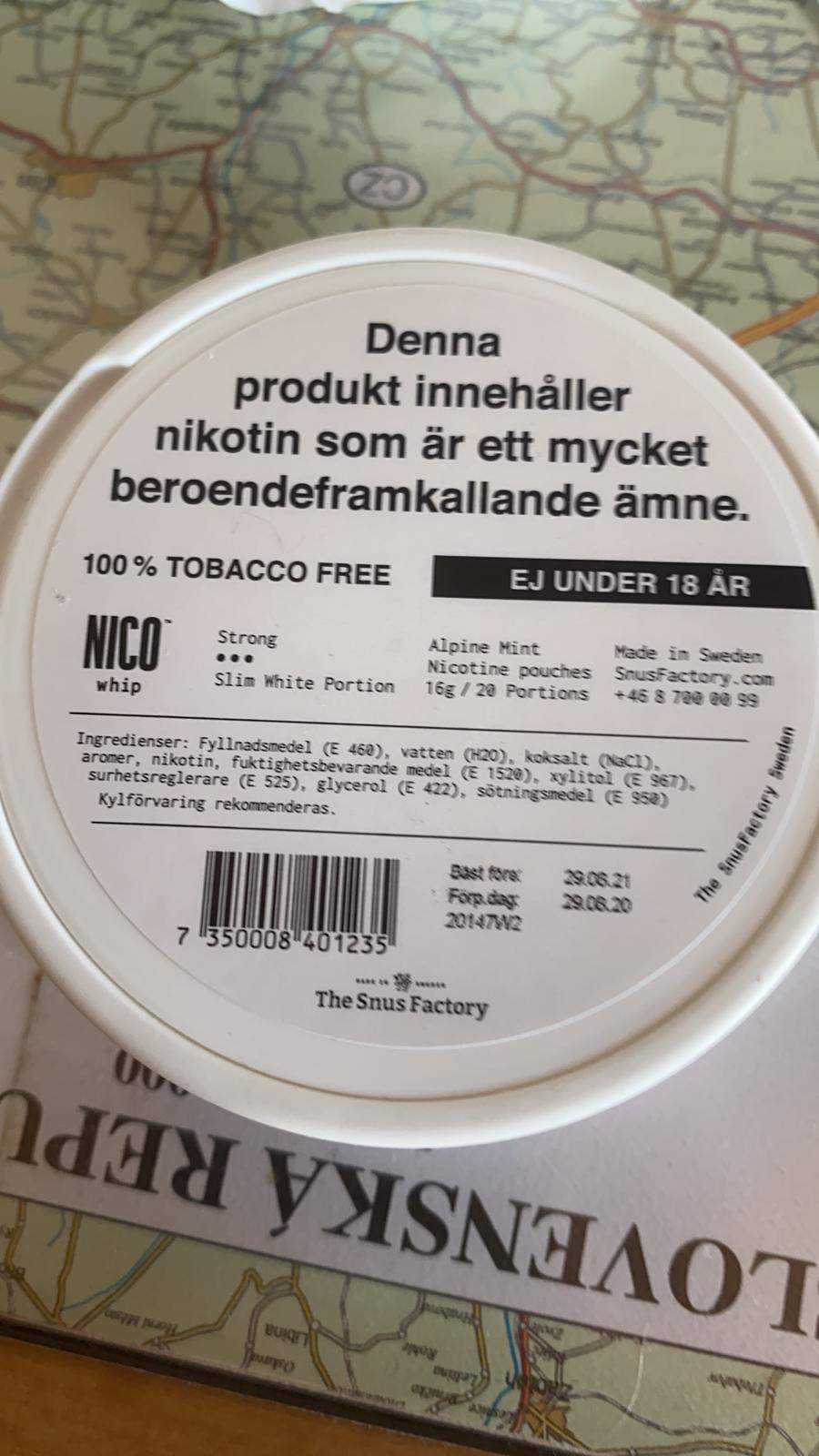

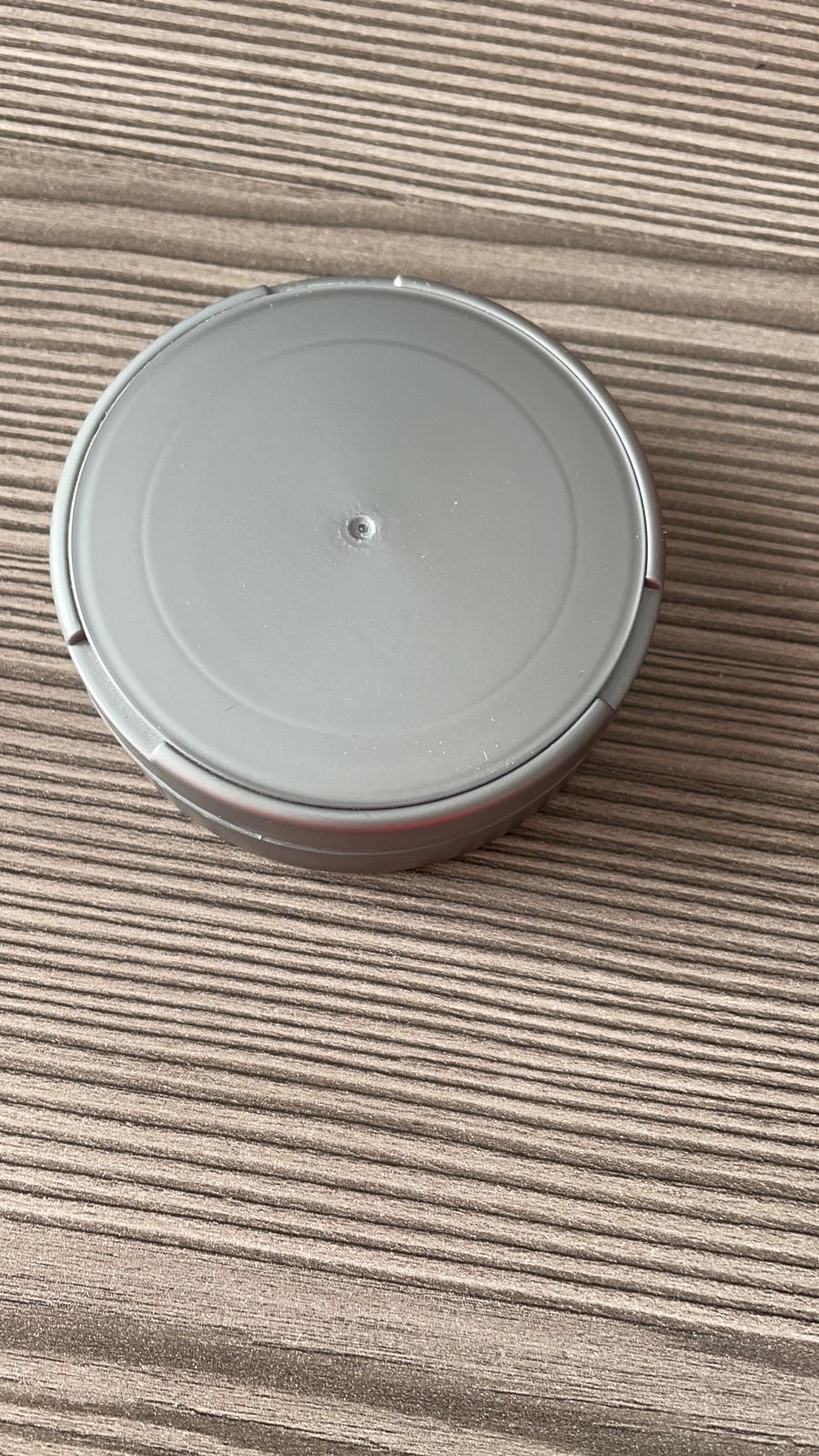

Can samples
This line is for shisha,mint,tobacco products filling into plastic can/jar.

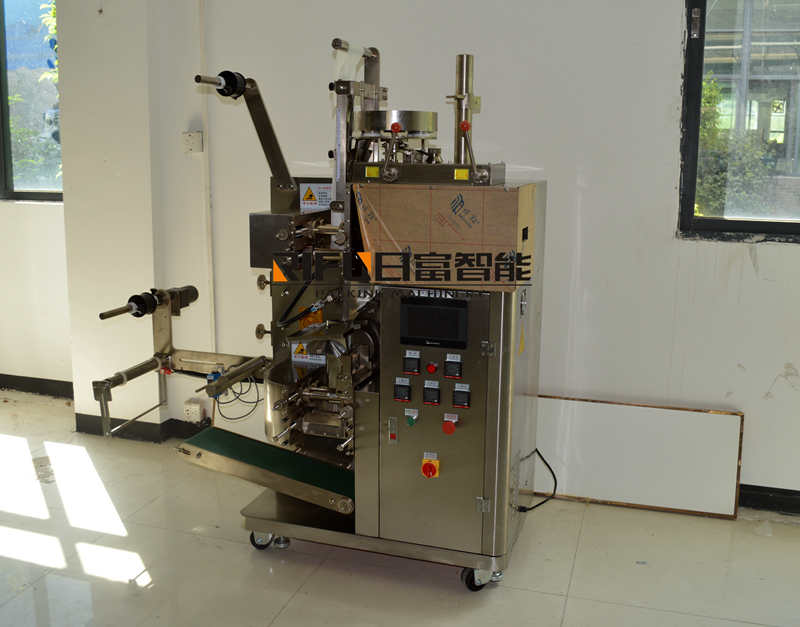

1.first packing machine for sachet bag to packing shisha,mint or tobacco in to small bag.
roll film,filter paper forming to bag and filling sealing.

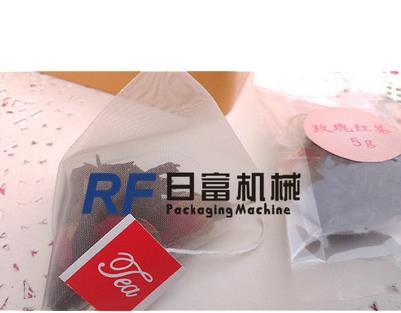

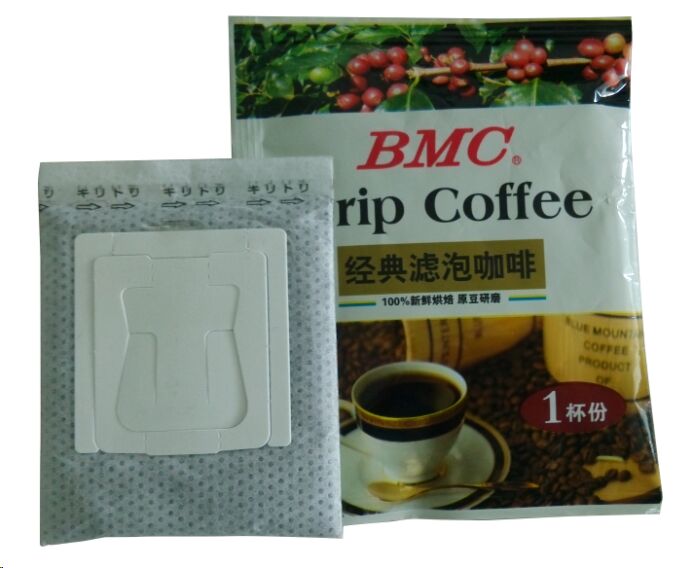

We have different model machines for small bag ,big bag,filter bag,bag with thread and tag/label,double chamber inner and outer bag,also for drip coffee bag.,triangle tea bag,etc.
sample bags

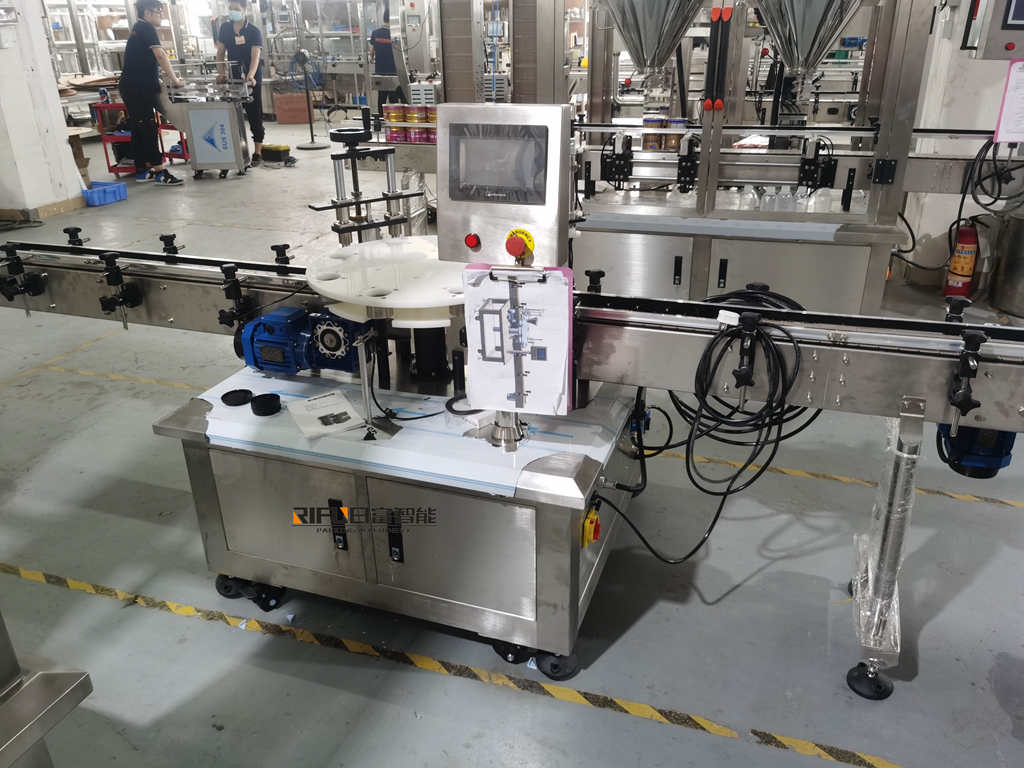

2.after sachet packing machine,then our machine pack the small bags into the plastic can.
this machine is rotary type filling machine,automatic counting the bag numbers and filling,two ine one machine.

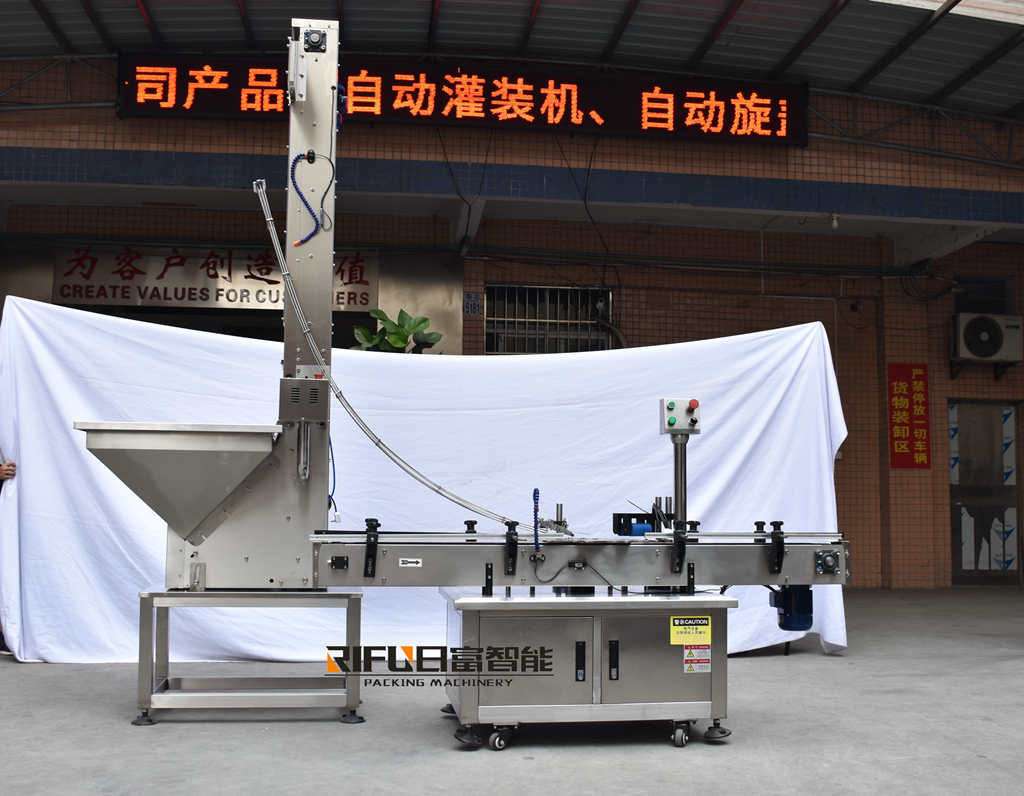

3.Then automatic press capping machine to close the cap automatically.
this capping machine is conbined with two parts,first cap elevator/cap feeder which can feeding the cap automatically,then rotary press capping machine to close the cap automatically.
The speed is around 30-60BPM according to different bottle and cap size.

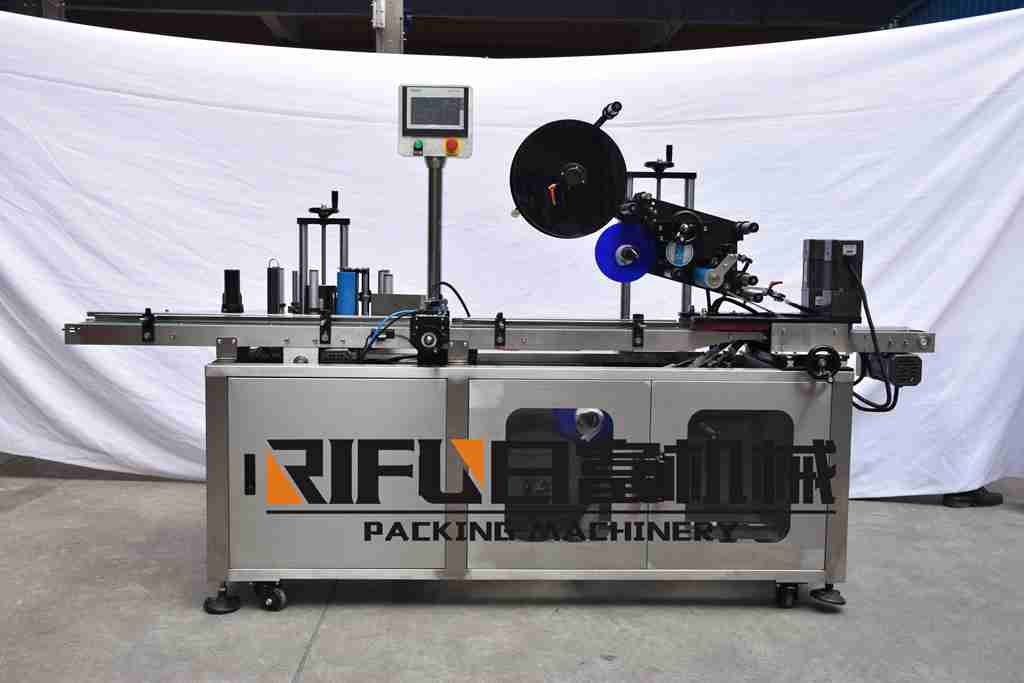

4.after capping the can/jar will go to the next station which is top and bottom and side labeling machine autoamtically.
this machine is multifuntuion,round can/jar/bottole wrap around label and top and bottom side label all in one machine.
it use stiicker roll lable which is self adhesive label,three side label need three label rolls for three label applicator.
the full machine is made of stainless steel and strong aluminum part,the main configuration is from international brand.

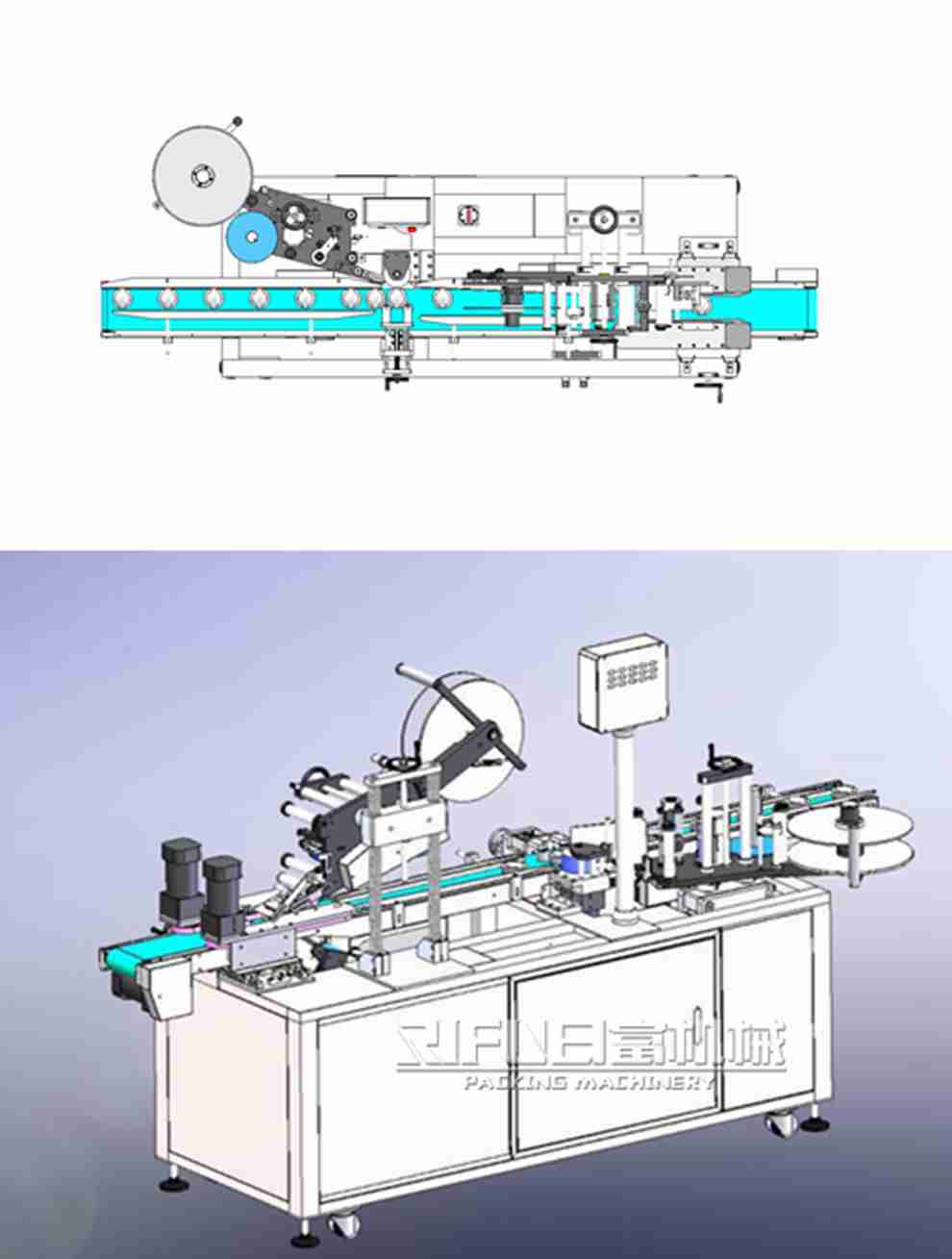

Drawing:

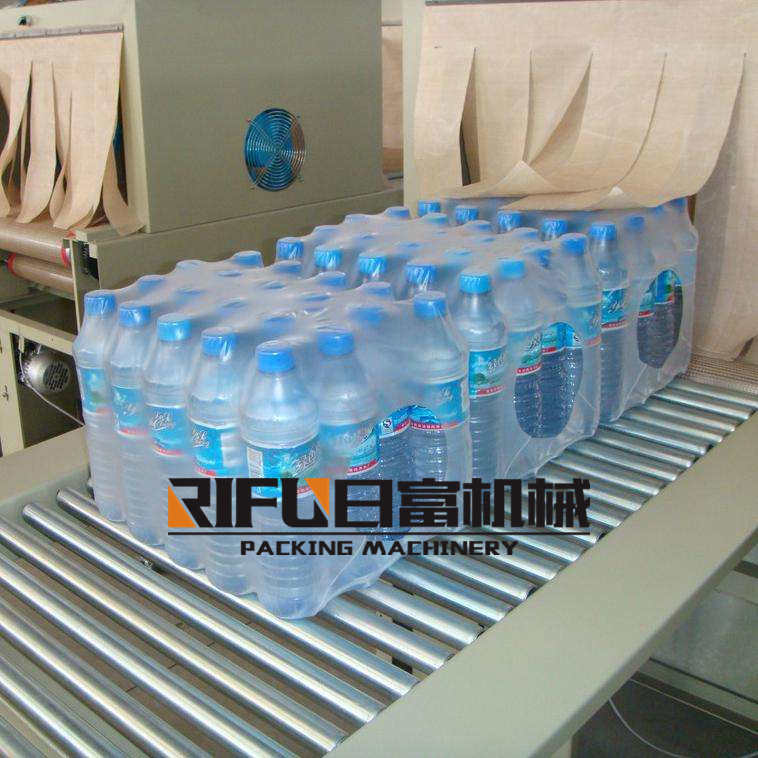

5.the final process is group cans film wrapping,10cans in one pack.

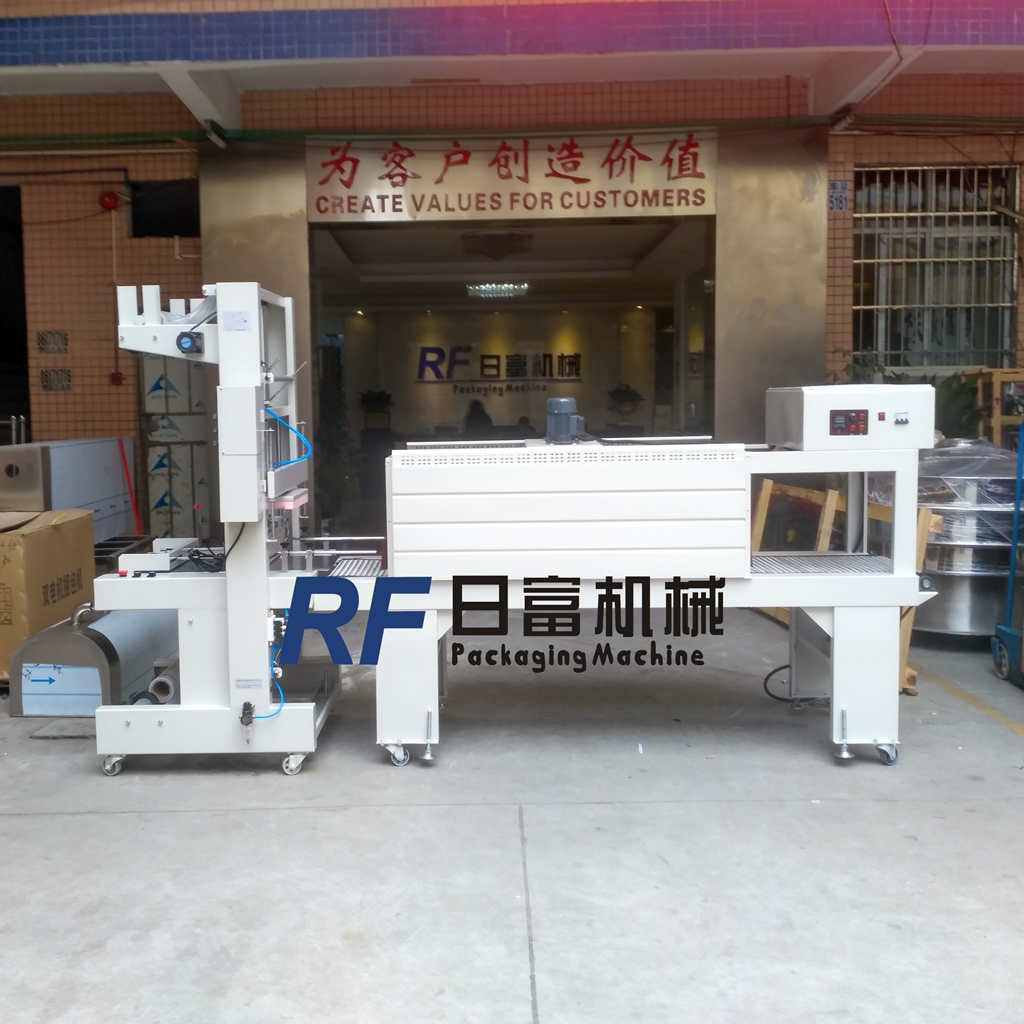

This machine conbined with two parts,wrapping machine and heat tunnel.
Usually used for bottle water group wrapping,and other product and industrials.
Applicaiton:
