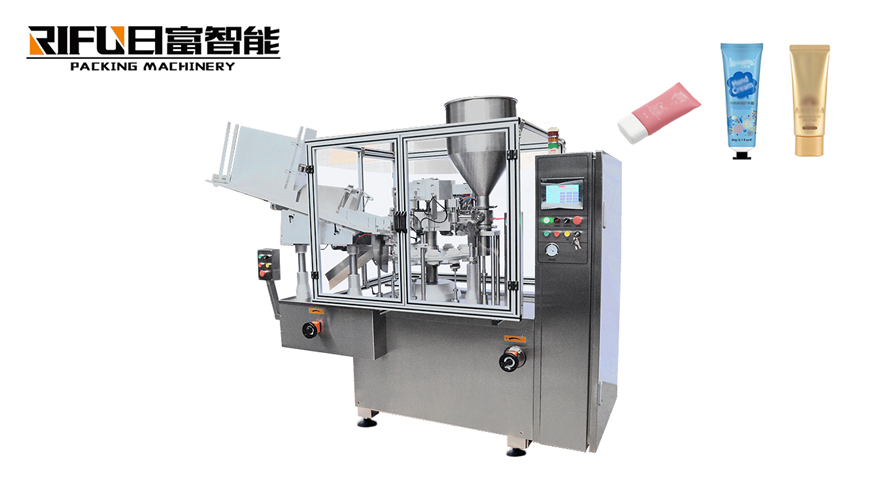

How the Soft Tube Filling Sealing Machine Work

The tube sealing machine is an automated packaging equipment designed to efficiently seal the filled tubes, ensuring the product is securely enclosed and maintaining its quality. It is widely used across various industries, including pharmaceuticals, cosmetics, and food, for packaging viscous materials in collapsible tubes.The working principle of a high-speed soft tube filling sealing machine can be described as follows:

1. Feeding Process: The soft tubes are fed into the machine automatically.

2. Tubing Positioning: Once the tubes enter the machine, they are positioned correctly in preparation for the filling process.

3.Filling Mechanis: The filling mechanism, which can be piston-based or peristaltic, fills the tubes with the product. This process ensures precise measurement and avoids leakage.

4. Sealing Process: After filling, the open ends of the tubes are sealed. This can be done using various methods such as heat sealing, ultrasonic sealing, or induction sealing, depending on the material of the tube and the requirements for the seal.

5.Heat Sealing: In the case of heat sealing, a heating element melts the inner layer of the tube's end, which then cools and solidifies to create a tight seal. An external cooling system may be used to speed up the cooling process.

6.Ultrasonic Sealing: Ultrasonic sealing uses high-frequency vibrations to create a hermetic seal without the need for heat, which is suitable for heat-sensitive materials.

7.Cutting and Trimming: Once the tubes are sealed at both ends, any excess material or the tube's tail is trimmed off to achieve a clean and professional finish.

8. Ejection System: The filled and sealed tubes are then ejected from the machine, either into a collection bin or onto a conveyor for further packaging processes.

9. Control System: The entire operation is controlled by a programmable logic controller (PLC) or a computer system that manages the speed, positioning, and synchronization of the machine.

10. Safety Features: High-speed tube sealing machines are equipped with safety features to prevent damage to the tubes or the machine in case of errors or malfunctions.

If you want know more details of machine.please contact us.We will send videos and recommend suitable types of machine for our customer.
