big box wrap machine feedback from Vietnam client
Back ground:
this is my old agent but this is our first cooperation.he is very considerate at begining.they are pleased with the quality and result our machine bring to them.

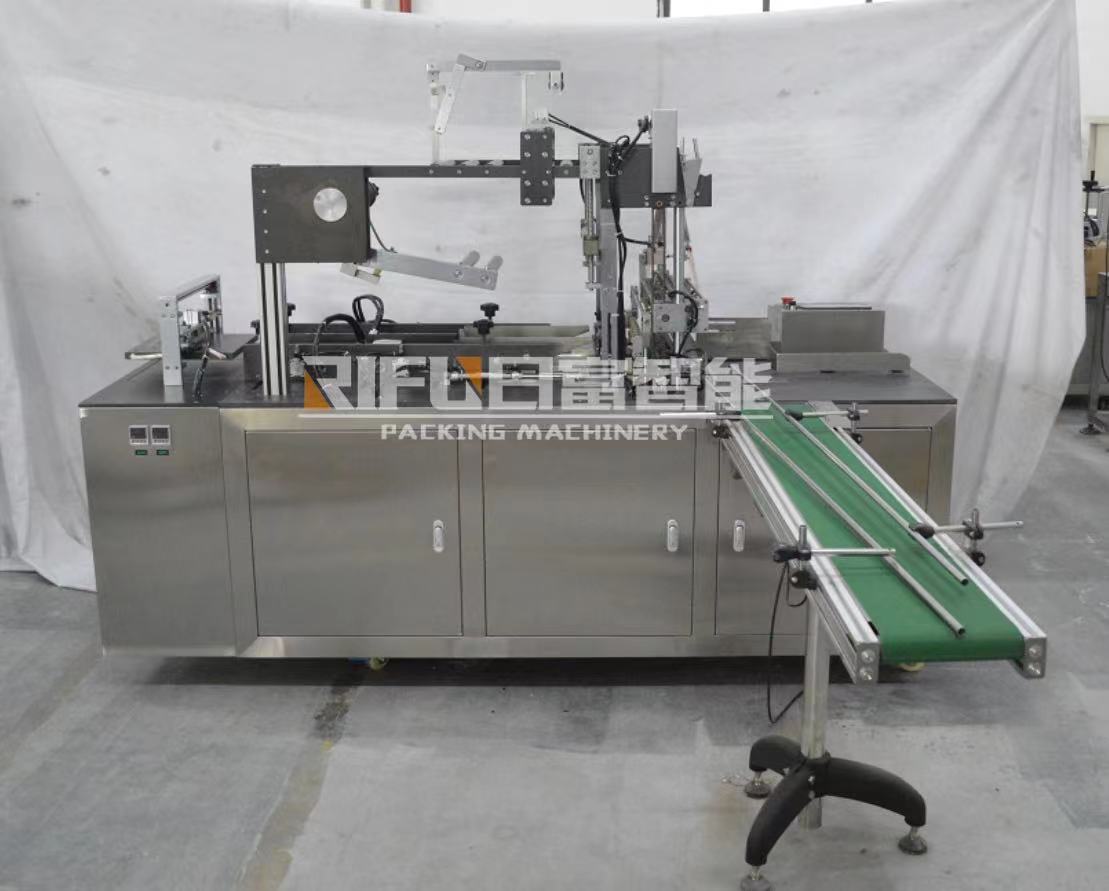

tooth paste tube packing wrapping production line
Description:
The machine is widely used in medicine, health products, food, tea boxes, cosmetics, stationery supplies, audio and video products and other industries of various box items in the single or collective automatic packaging. Enclosures such as medicines, poker, cigarette packs, cassettes VCD、 tapes, napkins, etc.
functional characteristics ：This machine adopts the inlet PLC man-machine interface control, its action all adopts the cylinder drive, the lower film system adopts the servo motor control, may adjust the lower film size arbitrarily, has the operation stability reliable, the seal firm, the flat beautiful, Easy to maintain and so on. Machine mini-type does not occupy space debugging convenient and fast, body platform, parts are made of stainless steel materials, in line with hygiene standards, beautiful appearance.
Main advantages:
The moving element adopts Taiwan Yadeke.
The film pulling mechanism adopts servo motor.
Stainless steel for the surface in contact with the product.
Push box, cut film, fold angle, long side seal, end seal, upper and lower shaping adopt pneumatic mechanism.
Equipment adjustment, easy to operate. The membrane cutting mechanism is integrated
Packing speed：20-50 b/m。
The equipment adopts imported aluminum profile。
Push box card box protection part, push box mechanism equipped with card box automatic jump off, automatic shutdown, can ensure the integrity of the packaging。
10、Automatic control is more humanized, with current status display, current fault display, history alarm view, fault post-processing method。
11、In the electrical installation, wiring, line neat, each line is in accordance with the drawing signs to do the marking，Make it easier for users to find and maintain。
Ensure that the plastic cover is flat, no damage, no warp.
Main technical parameters：
| Packing speed |
20-50pcs/min（Adjustable to product size） |
| Packing Scope |
（L）100-280mm（W）40-200mm（H）10-90mm |
| Equipment dimensions |
（L）2180mm（W）1000mm（H）1600mm |
| Conveyor table size |
（L）1500mm（W）230mm（H）990mm |
| Weight of equipment (approx.) |
800Kg |
| total power |
4.6Kw |
| voltage |
3X220V+N+PE |
| Working Pressure |
0.6-0.7Mpa |
| Machine size |
About 5.5 square metres of equipment occupied |
| Adap packaging materials |
0.018mm-0.03mmBOPPDouble-sided heat sealing film，OD Ø320mm ID Ø70mm |
Configuration：
| No. |
name |
number |
Manufacturer/country |
remarks |
| 1 |
Servo motor |
|
Mitsubishi Japan |
|
| 2 |
servo drivers |
|
Mitsubishi Japan |
|
| 3 |
PLC |
|
Mitsubishi Japan |
|
| 4 |
Touch screen |
|
Weinview taiwan CN |
|
| 5 |
reducer |
|
Ethel |
|
| 6 |
intermediate relay |
|
Schneider |
|
| 7 |
solid state relay |
|
MGR |
|
| 8 |
temperature controller |
|
Yatay |
|
| 9 |
proximity switch |
|
Schneider |
|
| 10 |
AC contactor |
|
Schneider |
|
| 11 |
Phase sequence protection relay |
|
Schneider |
|
| 12 |
pneumatic element |
|
airtac |
|
| 13 |
face |
|
Aluminum sheet |
|
