4 sides mask bag packing machine

Update time : 2021-07-15 15:32:11

4 sides mask bag packing machine

Ⅰ、 Characteristics

Friendly human-machine interaction interface to facilitate parameter setting and operation;
Prereferred controller intelligent control of the whole machine operation, three-axis servo drive, precise film delivery, stable feeding, precise bag cutting;
Hidden volume collection organization, beautiful and sanitary;
Customizable single, double, multi-channel packaging;
Optional online automatic printing date batch number function;

6、Customizable automatic feeding device;

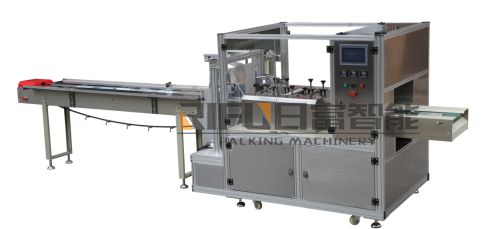

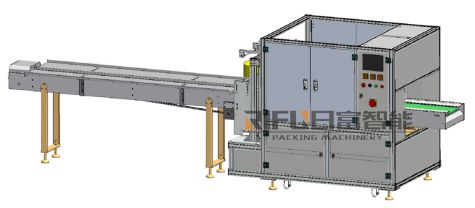

Graphic model

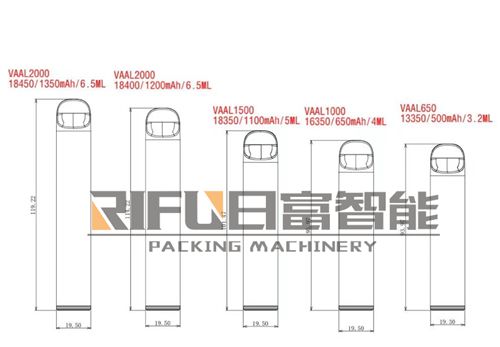

Sample picture

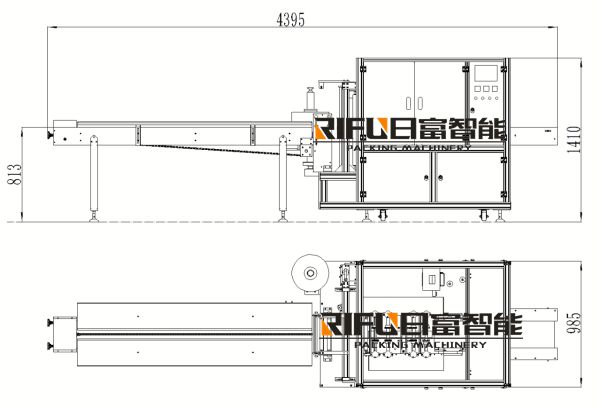

Dimension drawing

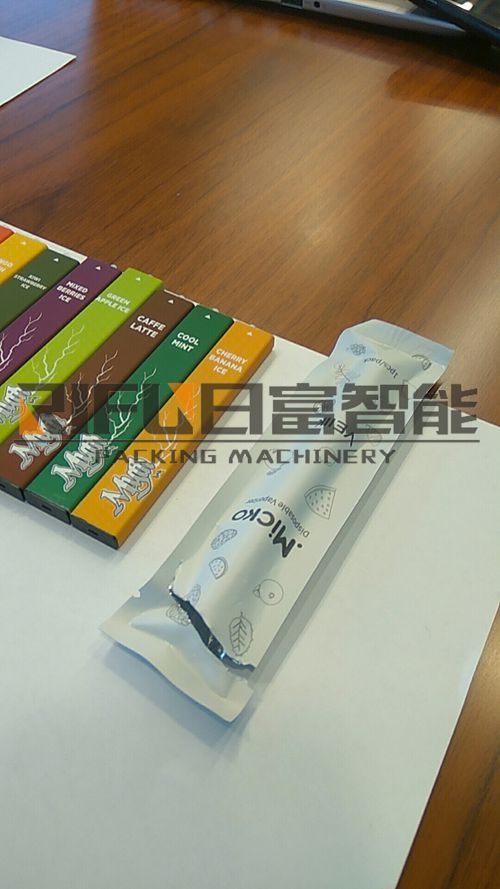

Samples:

Technological process
Manual place → into bag → bag made → seal → cut off → finished product

Ⅱ、Parameter

Model	DCF-100	DCF-100D
Name	Single-channel four-sided sealing and packaging machine	Dual-channel four-sealing packaging machine
Film width	160-500mm
Bag-making length	100-500（可根据产品设定或自检）
Bag width	70-240mm	70-120mm双道
Product height	1-10mm
Roll film diameter	Max.320mm
Packaging material	Laminated film opp/cpp Aluminum-coated paper-plastic film and other thermal seals
Packaging speed	40-100 bags/min（depends on the material and the envelope material ）
Power supply	220V,50/60HZ,3.2KW
Outline dimension	(L)4395 X(W)960X(H)1410mm
machine weight	About 800kg
Note	single channel	Dual-channel (can customize multi-channel)

Ⅲ、 Machine configuration

Name	Origin	quantity	Remark
Warren screen	Taiwan joint venture	1
Scram	Schneider	1
Start	Schneider	1
Crawl	Schneider	1
Stop	Schneider	1
Tailframe stops	Schneider	1
Fan	XYLFAN	1
Power Supply	Ming Wei	1
combination switch	Gree	1
solid state relay	YANGJI	3
Breaker	CHINT	1
Breaker	CHINT	1
Intermediate relay	OMRON	1
Coder	Ht	1
Servo motor	China	2	0.75KW
Servo motor	China	1	0.4W
temperature-controlled meter	Shanghai Yatai	2
Photoeye	OETAI	1
